FEDAR FD1912S Sublimation Printer


Printheads EPSON S3200

Print Width 1900mm

Resolution 3200

Printheads Quantity 12

Speed 1 PASS 1100Sqm/h

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

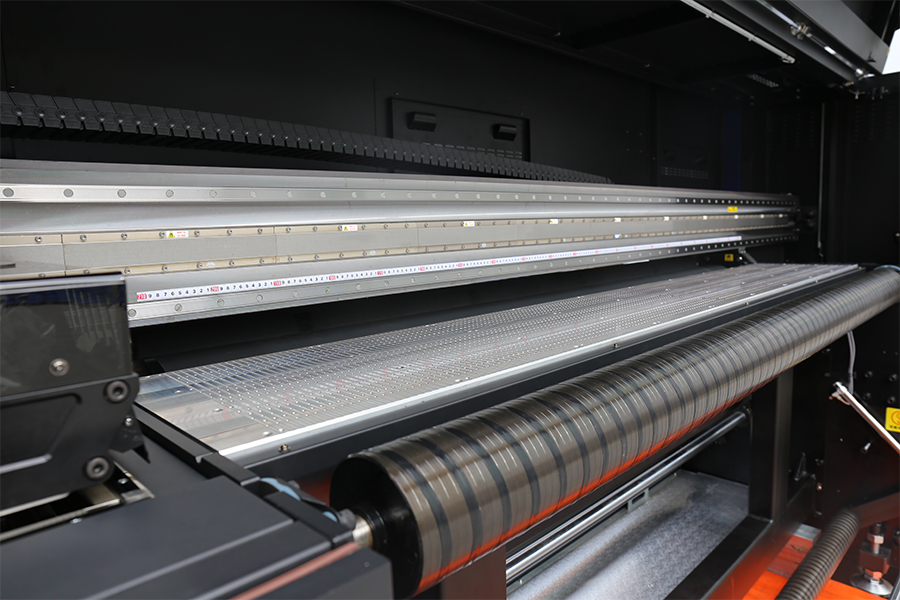

Strengthened Beam:
The thickened steel beam is heat treatedand aged several times to ensure that theaccuracy of the beam is less than 0.03mm to ensure the higher running accuracy ofthe carriage.

Feeding & Take-up System:
Industrial Feeding & Take-up System.

Imported THK Mute Guide Rail:
Equipped Japan THK super muteSS+ linear guide rail, low noise,high precision, excellent durability.

Printhead Epson S3200 Printheads Nozzle Quantity 3200
Printhead Quantity 12 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 300*600dpi  1PASS: 1100Sqm/h 300*1200dpi  2PASS: 620Sqm/h  Media Transfer Auto Media Feeding and
300*1800dpi  3PASS: 410/Sqm/h 300*2400dpi  4PASS: 310Sqm/h  Taking-up System, Roll to Roll
Speed 1pass 1100/h Drying Method Extra Dryer Device
*Tested on linear printing without feather function 2pass 620/h Ink Supply Method Siphon Positive Pressure Ink Supply
3pass 410/h Head Moisture Auto Head Cleaning and Moisturize
  *speed is tested on full-size media Print Media Transfer Paper
  without feather function
Ink Type Sublimation Ink, Transmission Gigabit LAN
Water based Pigment Ink Interface
Computer System Win7, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size Dimension:4000*1835*1880mm10000m Media Feeding & Take-up Unit: 2600*1065*1120mmBase Unit Packing:2700*1100*1365mmPrint Unit Packing:4150*1370*2140mm Power Supply Printer Input Voltage: 220VAC  Dryer Input Voltage: 380VACMachine Printing Power: 21.5KW  Dryer: Max 14.5KW
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I7, Gigabit LAN
Standard Configuration Ink Level Alarm System
