FEDAR FD61915E-A Sublimation Printer


Printheads EPSON I3200-A1

Print Width 1900mm

Resolution 3200

Printheads Quantity 15

Speed 1 PASS 610Sqm/h

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

Capping Station:
Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

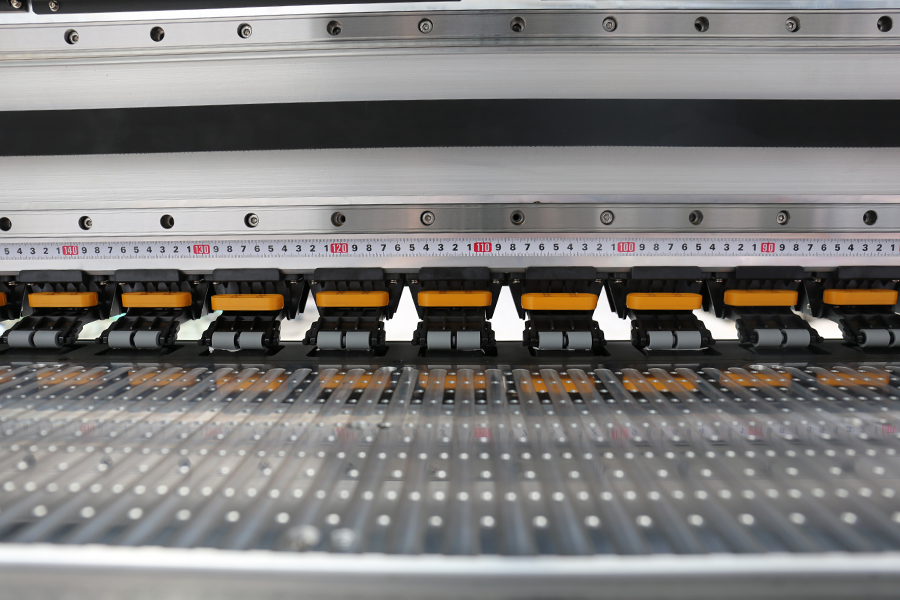

Pinch Rollers:
Anti-static design, uniform strength, to ensure smooth paper feeding, simple and easy to adjust.

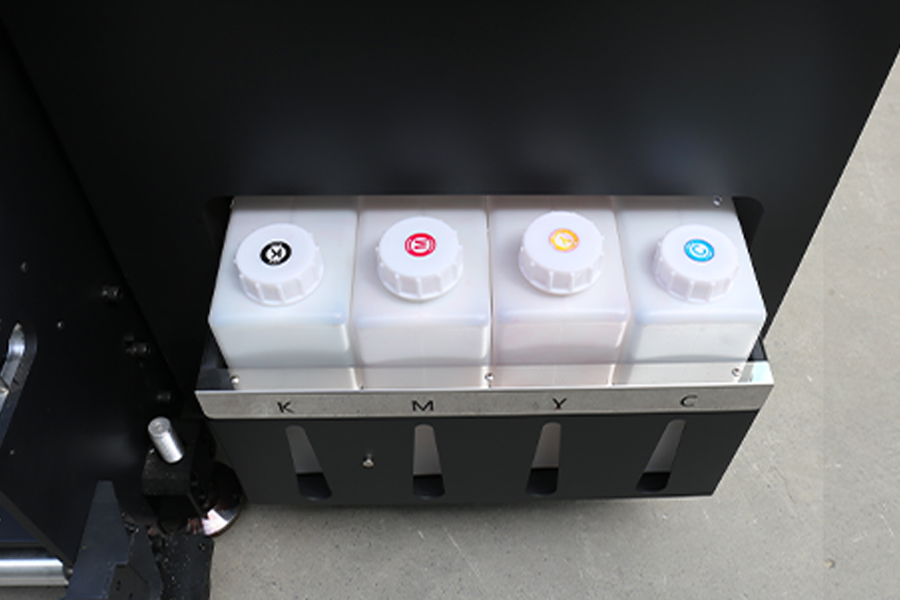

Ink Tank:
Large-capacity ink cartridges, with a secondary ink supply system to avoid frequent addition of ink.

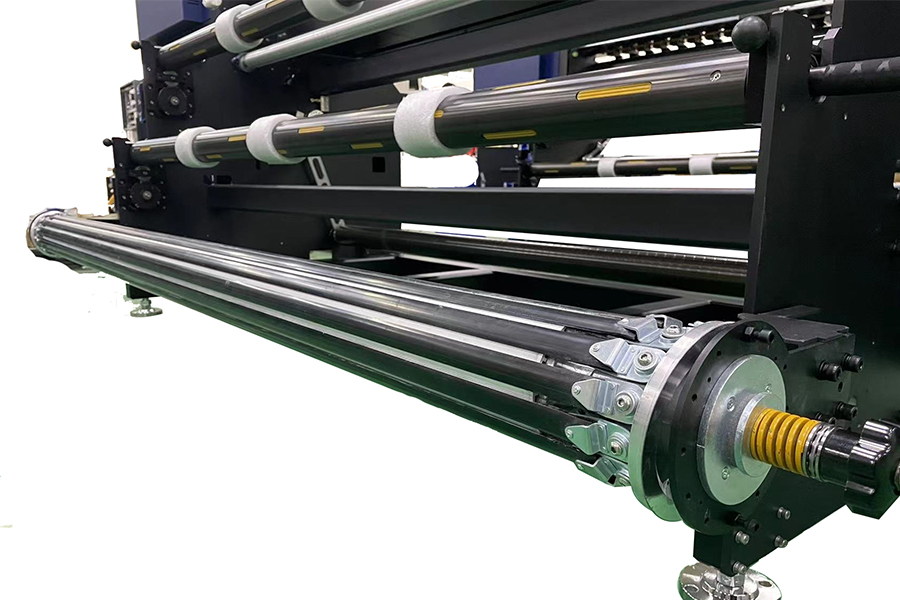

Take&up Unit:
Special designed paper transmission rollerwhich is for thin paper printing,20-30g paper can be printed perfectly without wrinkle.

Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 15 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 240*1800/240*3600/360*1800/360*3600(DPI) Media Transfer Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
1pass 610㎡/h Drying Method Extra Dryer Device
2pass 300㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
    Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Package Size 3920*1150*2110mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 15KW
Dryer Power: Max. 10.8KW
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System
