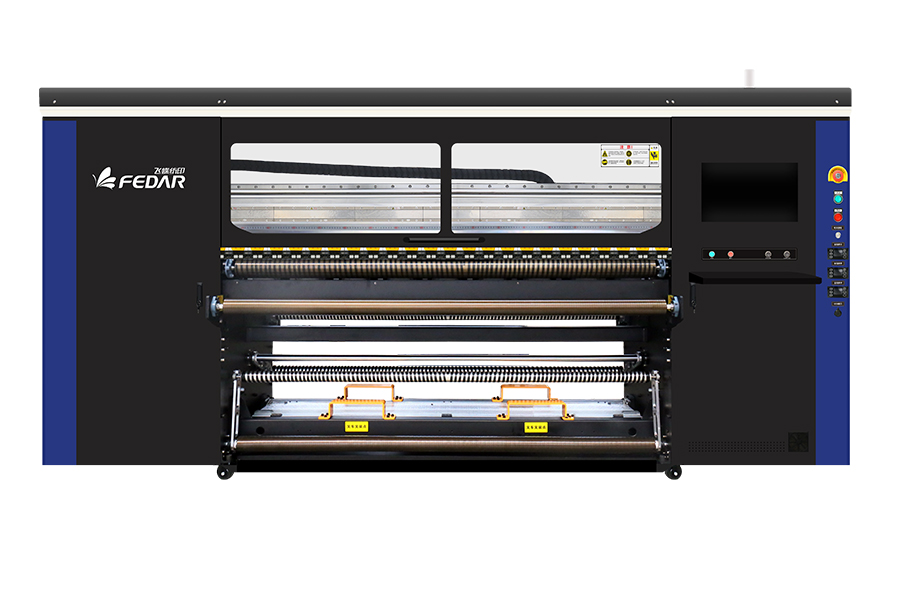

FEDAR FD61916E Sublimation Printer


Printheads EPSON I3200-A1

Print Width 1900mm

Resolution 3200

Printheads Quantity 16

Speed 1 PASS 670 ㎡/h

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

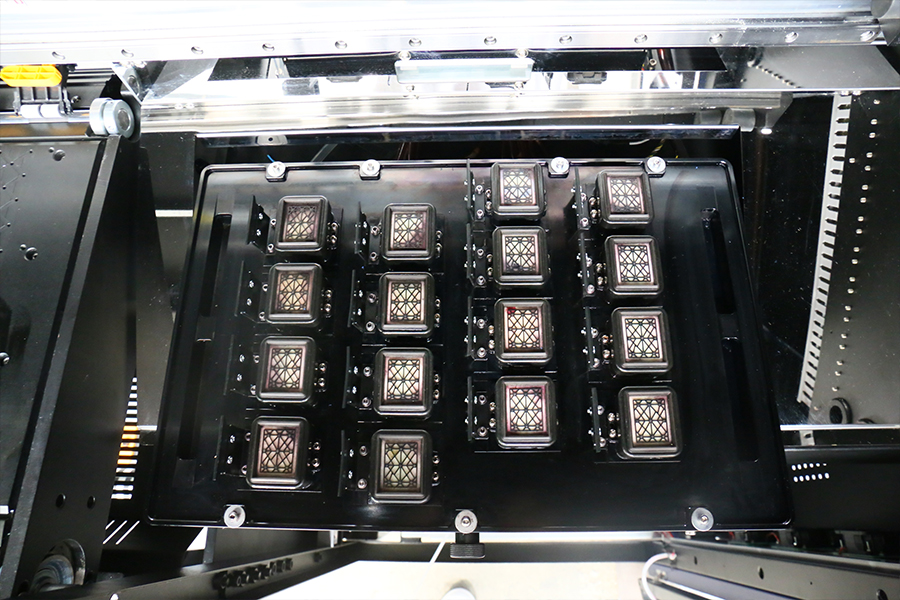

EPSON I3200-A1 printhead has 3200 nozzes, variabledrop ink technology, improves printing resolutionimproves color restoration degree, up to four levels ofgray print can be supported.

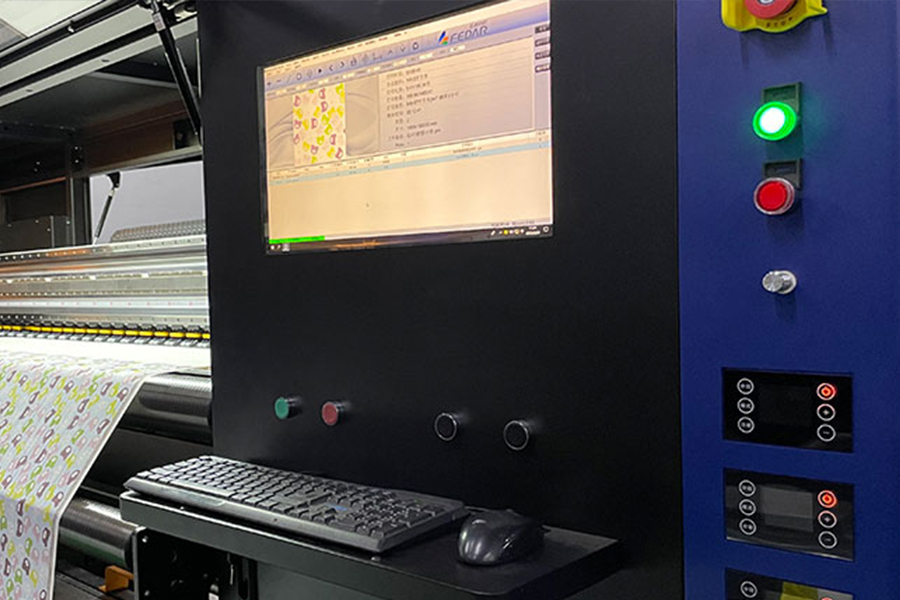

Computer Holeder:
Integrated computer‘s design, more convenient to use.

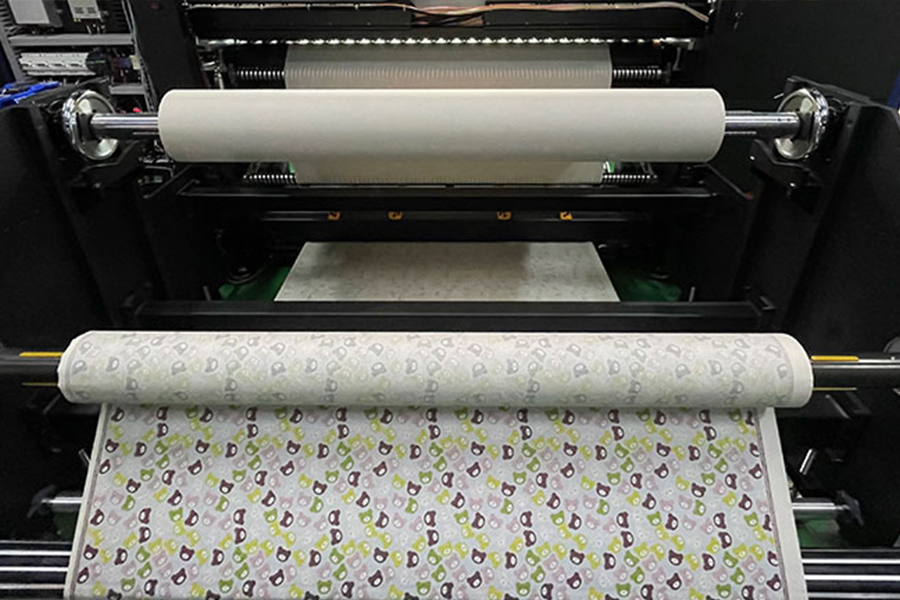

Feeding & Take-up System:
Adopts constant tension swing rod type paper feedingand taking up control system ensures that the paper isevenly stressed during the entire printing process, andthe paper taking-up is smooth and tight to avoid loosetightening.

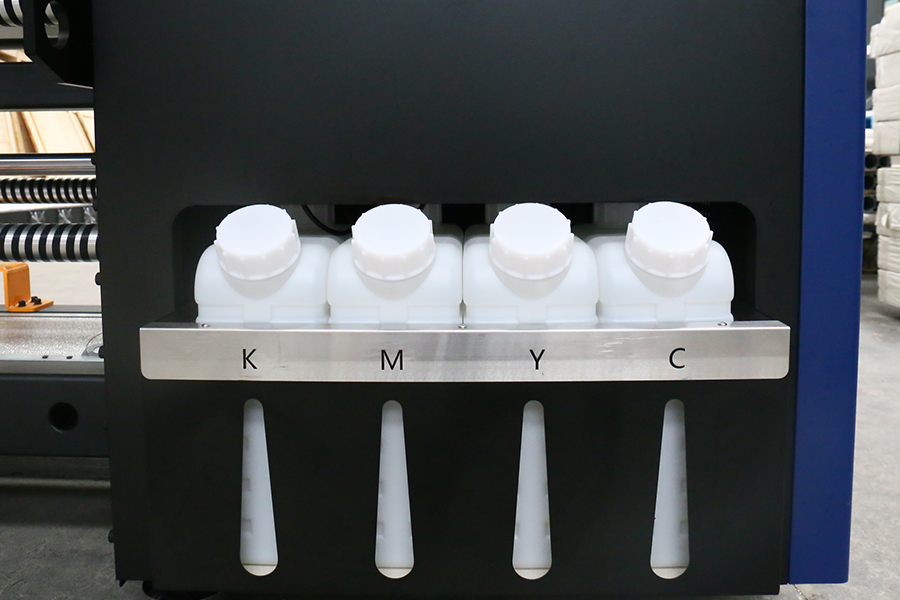

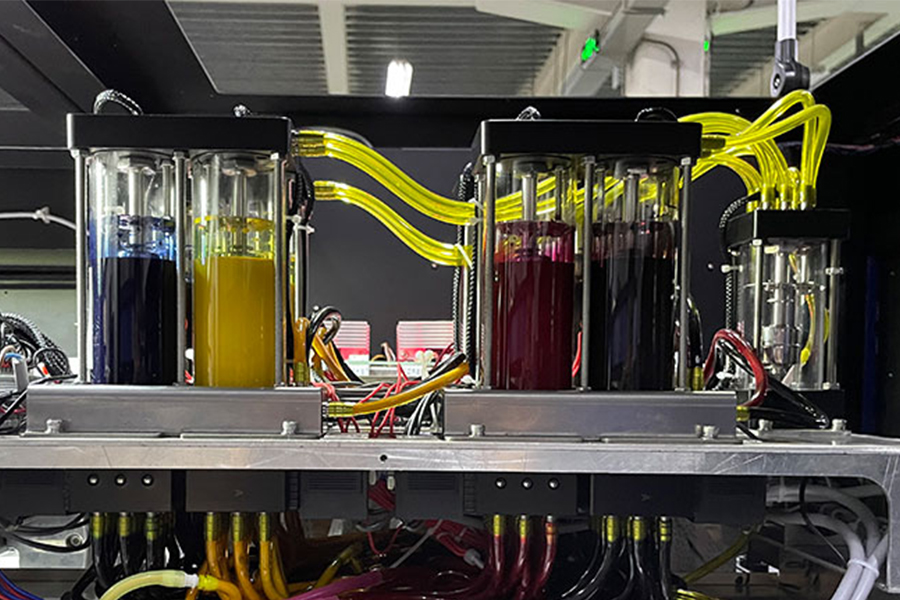

Ink Supply System:
15L large continuous ink supply system,which can completely achieve a long timestable printing ink, no flying ink.

Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 16 Print Width 1900mm
Ink Color CMYK Print Height 2-5mm
Resolution 240*1800/240*3600/360*1800/360*3600(DPI) Media Transfer Auto Media Feeding and
Taking-up System, Roll to Roll
*Tested on linear printing without feather function
1pass 670㎡/h Drying Method Extra Dryer Device
2pass 350㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
    Head Moisture
Auto Head Cleaning and Moisturize
*speed is tested on full-size media
without feather function
Print Media Transfer Paper
Ink Type Sublimation Ink,
Water based Pigment Ink
Gigabit LAN
Computer System Win7, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃ RIP Software Maintop, FlexiPRINT, ONYX, Neostampa and etc. Maintop7.0 (Standard Equipped)
Package Size Dimension:3860*2070*2230mm Packing:4020*1150*2230mm
10000m Media Feeding & Take-up Unit:2600*1470*1180mm Packing:2650*1390*1435mm
Power Supply 210-230V, 50/60HZ, 16A
Print Power: 19KW
Dryer Power: Max. 14.4KW
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN
Standard Configuration Ink Level Alarm System
