SC-1700M1+ (Stop)


Type Full-auto low-temp. laminator

Side Single side

Colors Double Four Color

Number of Nozzles (180 Nozzles×8 Lines) 1/2 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

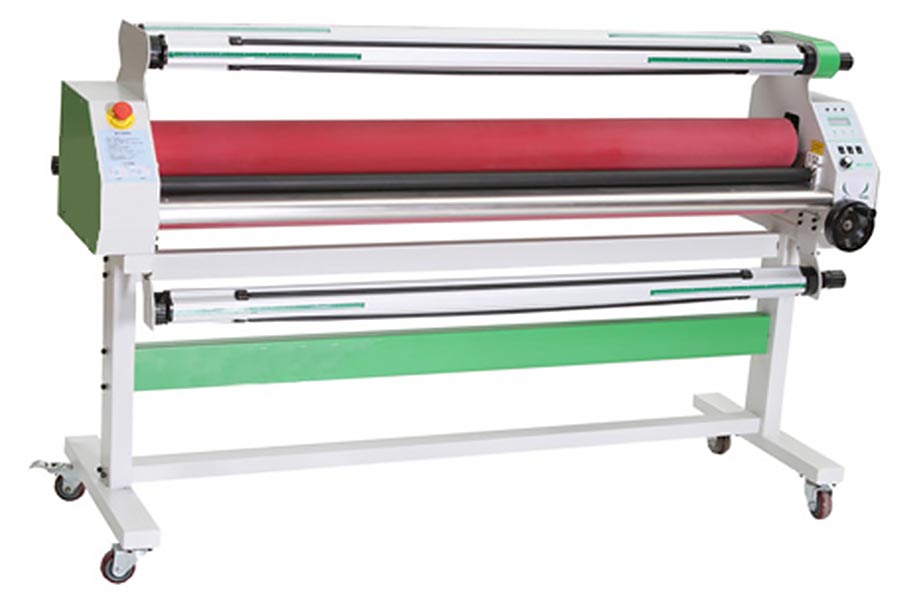

Single-side Full-auto low-temp. Laminator


Patented Feeding and Film roll system brings you a new experience of laminator.
Top-heated silicon for rollers ensures heavy-duty output.
Adjustable setting for increased capacity and versatility.

Easy to use

Patented Feeding and Film roll system, easier of loading and faster for operating.
Fully adjustable nip-gap and pressure for precise application
Roll-to-roll and piece-to-piece operation capacity

Foot switch for hands free operation
Laser safety eyes and 2 emergency stops


Parameter SC-1700M1+1
Max laminator width 1630mm/64"
Max laminator thickness 23mm/0.9"
Max speed 6m/min
Max temp 60℃/140F
Up and down Air cylinder
heating infrared
Warm up time 15-20min
Power consumption 0.5-0.8kw/h
Power input 1400w
Volt 110V/220V
N.w 150kg
