![](/d/pic/textil-printer/fd30-dtf-printer-3.jpg)

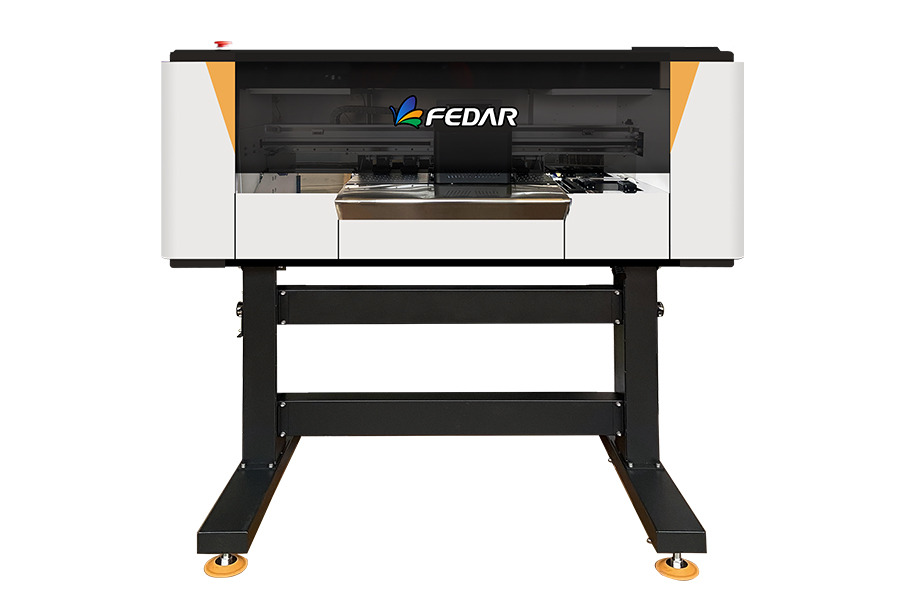

FD30 DTF Printer
Mode:
Printheads EPSON XP600
Print Width 300mm
Resolution 1080
Printheads Quantity 2
Speed 6 PASS 4 ㎡/h
We're here to help:Easy ways to get the answers you need.

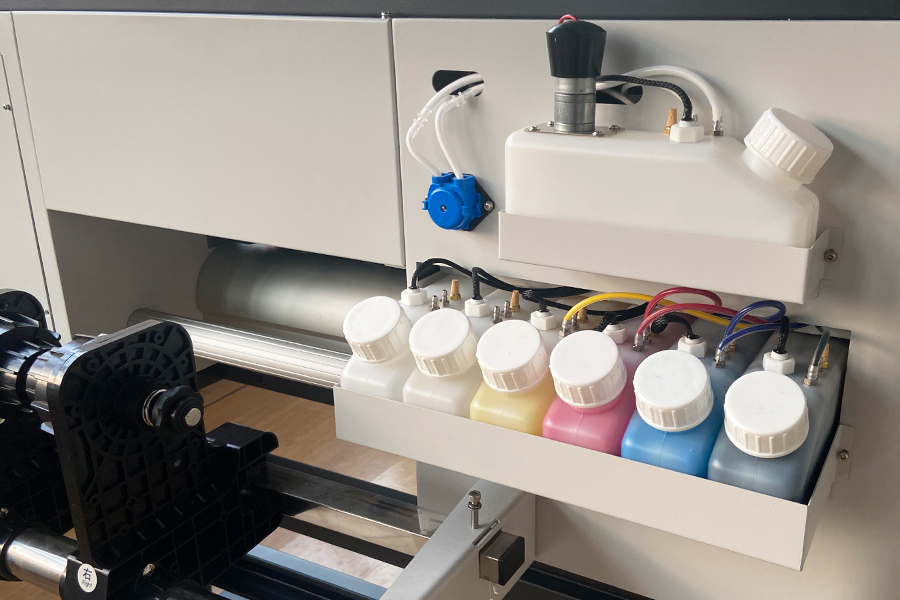

CMYK +W Ink Printing:
Original ink, printing bright,high degree of color reduction.
Imported Silent Linear Guide Rail:
Smoother operation and longer life.
Import Fluororubber Pinch Rollers:
Reduce static and ink misting, ensureprinting quality, and reject the outputsof media wrinkles.
Print continues even if power recoveredafter breaking off:
When the connection is disconnected due to environmentalinterference in the printing process,the control software canautomatically detect the reconnection and splinter the lastdisconnected part to continue printing, avoiding waste.
![](/d/pic/textil-printer/%E7%83%AB%E7%94%BB%E6%9C%BA-%E6%B5%81%E7%A8%8B650.jpg)
FD30 DTF Printer With Shake Powder | ||||
Printhead | EPS XP600 | Nozzle Quantity | 1080 | |
Printhead Quantity | 2 | Print Width | 300mm | |
Ink Color | CMYK+W Pigment Ink | Print Height | 2-5mm | |
Resolution | 360/1080 6pass(DPI) | Media | Pet Film | |
720/1080 12pass(DPI) | ||||
Speed | 6pass | 4㎡/h | Drying Method | Extra Dryer Device |
*Tested on linear printing without feather function | Ink Supply Method | Siphon Positive Pressure Ink Supply | ||
8pass | 3㎡/h | Head Moisture | Auto Head Cleaning and Moisturize | |
Method | ||||
Ink Cycle | Auto White ink cycle | |||
Ink Type | Pigment Ink | Transmission | Gigabit LAN | |
Interface | ||||
Computer System | Win7, Win10(Professional) | File Forms | TIFF, JPG, EPS, PDF, etc. | |
Operate Environment | Temp.:18℃-30℃, Humidity: 35℃-65℃ | RIP Software | Photoprint | |
Maintop | ||||
Package Size | 1200*650*620mm | Power Supply | 210V, 50/60HZ, 10A | |
Print Power: 1000W | ||||
Dryer Power: Max.3500W | ||||
Computer Configuration | Hard Disk: HARD DISK: 500G or more,GPU: ATI Discrete GPU | |||
Memory: 8G or more, CPU: Intel i5 Processor |
