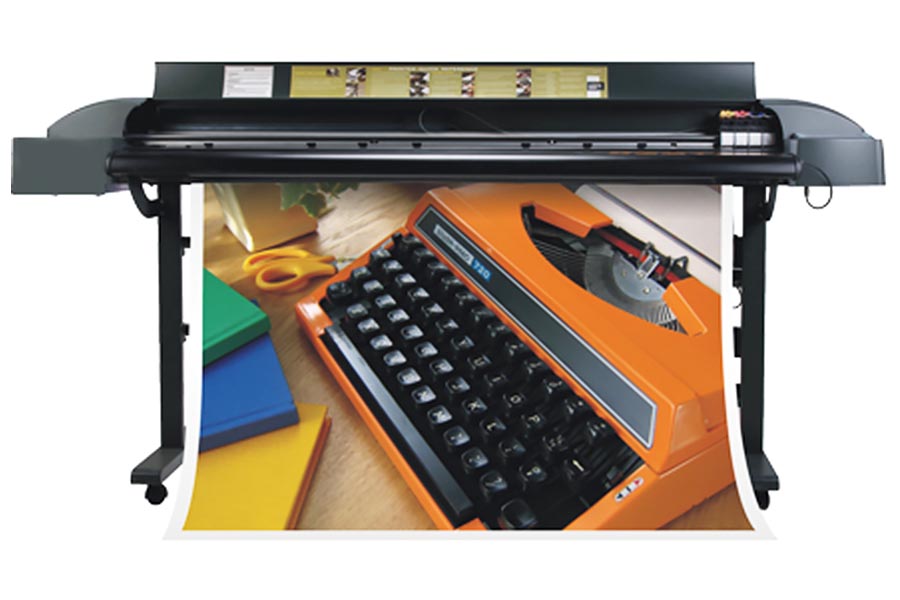

SC-760 (Stop)

Mode:

Printhead Technology Thermal foaming print

Ink Type Water-based ink

Colors Double Four Color

Number of Nozzles (180 Nozzles×8 Lines) 1/2 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

Functions and features

1.Adopting thermal inkjet microburst technology, which makes high pictures quality.
2.The main body is made of aluminum alloy, more attractive and stronger, walking media axis is made of bearing steel-walking media more accurately.
3.Blue LCD in low-radiation, key-press with perfect design, which makes it very convenient to work at night, and easier to operate.
4.Automatic media feeding and take-up system and automatic media cutter, make it convenient in application.
5.Upgrated mainboard with higher quality chips makes higher image quality, USB and paralleled printing ports give you more convenience.





Print Technology On-demand thermal foam
inkjet MicroBurst
technology
Drivers Winxp
Ink delivery
system
Continuous ink system
with 500ml refilable
reservoirs
Output Maintop
Max printing size 152cm Interfaces 100 base T Ethernet
option
Colors CMYK Processor Power PC
Applied ink Skycolor series dye-based
and pigment-based ink
Buffer 32mb standard
Applied edia Indoor priting media
are compatible
Power Supply Universal 90 to 264 VAV,47 to 63HZ
Media handing Standard feeding&take-up
system, dryer
Power
consumption
35Widle, 145W typical
Print resolution 600*600dpi, 300*300dpi Noise Standby<60 DBA,
Operational:<72 DBA
File resolution Accepts 600*600 or
300*300dpi files
Operation
environment
Temp:15℃to 30℃
Humidity: 5%to80%RH,
non-condendsing
Storage Temp:-21℃to 60℃
Humidity: 5%to80%RH,
non-condendsing
Authentication CE,ISO9001:2008
Language English, French, Spaish,
Italian
Weight 79kg
    Dimension 240CM*71CM*12CM
