SC-1700F2 (Stop)

Mode:

Type Full-auto hot laminator

Side Double side

Colors Double Four Color

Number of Nozzles (180 Nozzles×8 Lines) 1/2 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

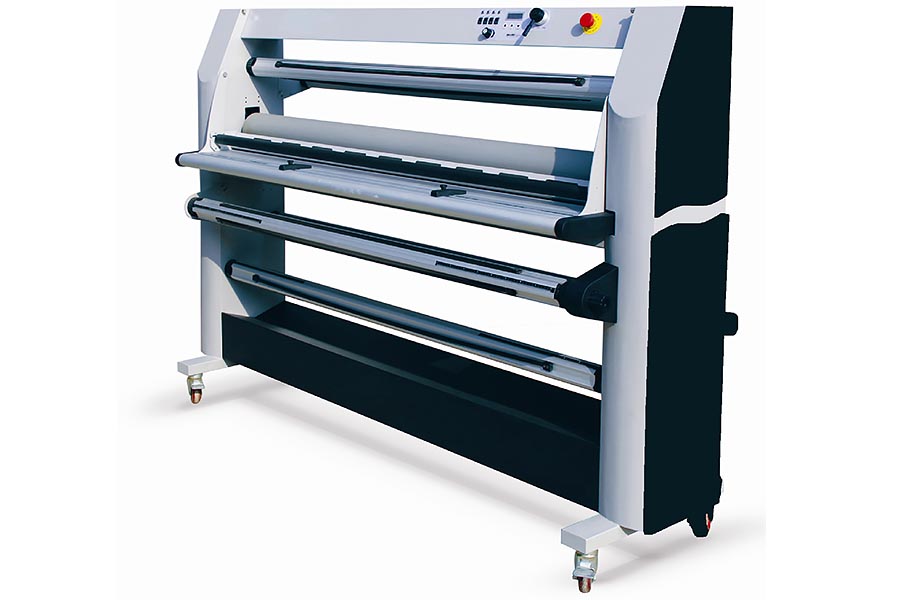

Double-side Full-auto Hot Laminator

Performance

Large-diameter high quality Top-heated silicon roller
Adjustable settings for increase capacity and versatility
Double sided Hot&cold laminator
Unique anti-tilt and anti-fold system ensures clear output

Easy to use
Automatic pressure and nip gap adjustable
Simple roll tension regulation system
Light weight drop-in supply shafts with auto-grip-for easy loading
Roll-to-roll and piece-to-piece operation capacity
Foot pedal switch for pieces accurate application

Safety
Foot switch for hands free operation
Laser safety eyes and 2 emergency stops
CE, ROHS, RCM


Parameter SC-1700F2
Max laminator width 1620mm/64"
Max laminator thickness 30mm/1.2"
Max speed 8m/min
Max temp 150℃/302F
Up and down Air cylinder
heating infrared
Warm up time 15-20min
Power consumption 0.9-1.8kw/h
Power input 4300w
Volt 110V/220V
N.w 260kg
