FD70-3 DTF Printer


Printheads EPSON I3200-A1

Print Width 600mm

Resolution 3200

Printheads Quantity 3

Speed 6 PASS 8Sqm/h

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

 New Technology Cotton Directly Flim Transfer Paper Printing Machine With Pigment Ink


 1. Adopt EPS3200 printhead,4 pass printing speed 22sqm/h.

 2. Complete production solution,low-cost invest,big profits

 3. High efficiency,High cost performance

 4. Easy to operate,max support 9 gray scale

 5. Wide applications,design for textile printing

 6. Environment friendly and energy conservation

Model FD70-3
Printhead Type: EPSON 13200-A1
Quantity: 3
Print Width 600mm
Print Color CMYK+LC LM 2 FLUO. /4 FLUO.+W
*Tested on linear printing without feather function
6pass  8m²/h
8pass  6m²/h
Ink Type Pigmemt ink
Media PET Film
Media Feeding Normal Feeding System
Transmit Port Ethrnet
RIP Software Printfactory, Maintop, Photoprint, Onyx
Color Management ICC Profile

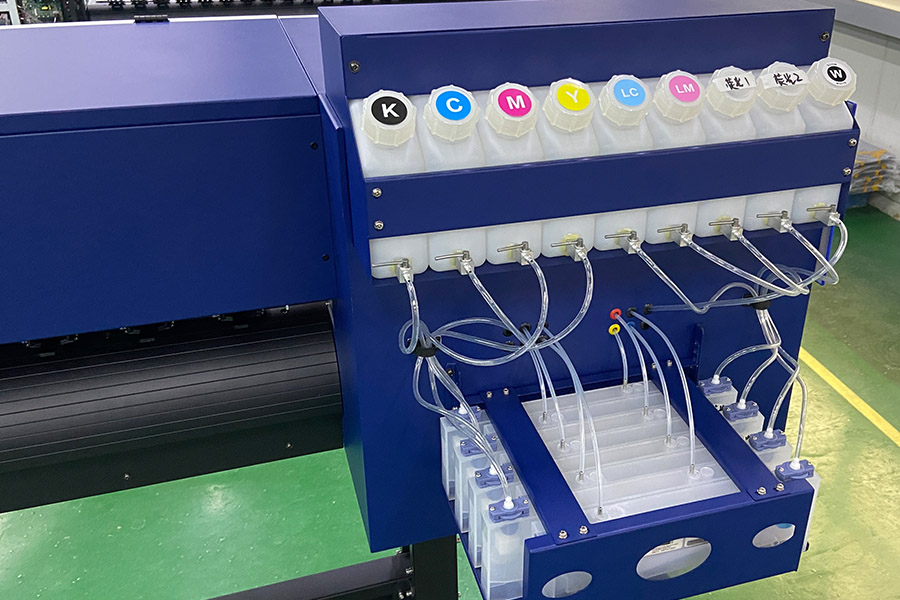

Ink Supply Cycle White Ink Supply System
Work Environment Temp.: 11℃-30℃,  Humidity: 35℃-65℃
PC Configuration Win 7, Win8, Win10
Hard Disk: NTFS, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I7, Gigabit LAN, Memory: More than 8G DD4R
Power AC220V, 50HZ/60HZ
Printer Size  External Size:1865*676*1480mm                                                       Package Size:2060*990*960mm
