FD65-2 DTF Printer

Mode:

Printheads EPSON I3200-A1

Print Width 600mm

Resolution 3200

Printheads Quantity 2

Speed 6 PASS 8Sqm/h

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

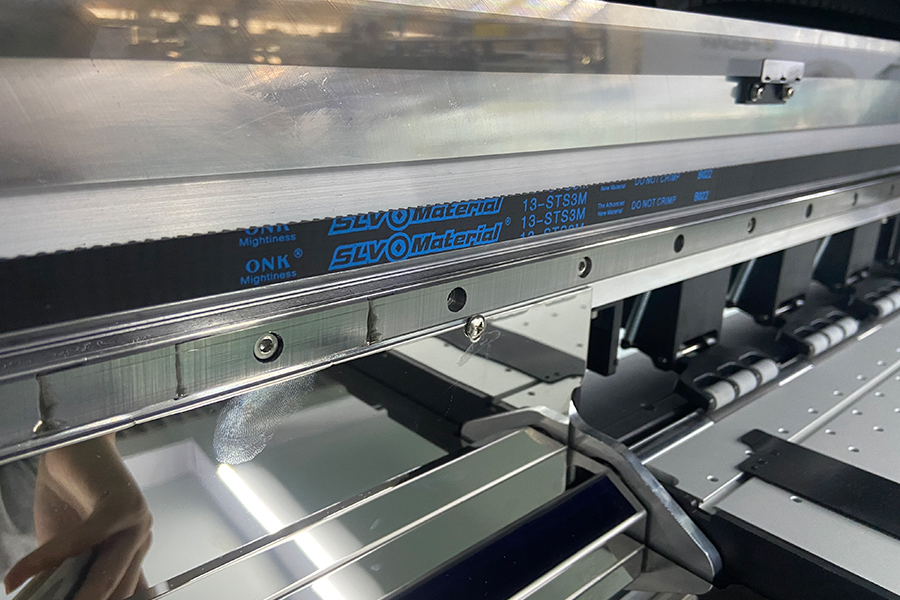

 1. Specially Designed Car
The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.
2. Advanced Capping Station
Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the
ink flow fluently.
3. Fluororubber Pressure Roller
US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the phenomenon of
partial paper bulging during the printing process.
4. High Precision Platform
The printing platform is controlled within ±7.5 wires and the surface hard oxidation treatment, no deformation for a long time.



                                             FD65-2  Digital Printing Plotter With Shake Powder
Printhead EPS I3200-A1 Nozzle Quantity 3200
Printhead Quantity 2 Print Width 600mm
Ink Color CMYK+W Pigment Ink Print Height 2-5mm
Resolution 360*1200/360*1800/ Media Pyrograph Film
720*1200/720*1800(DPI)
Speed 2pass 15-20㎡/h Drying Method Extra Dryer Device
*Tested on linear printing without feather function Ink Supply Method Siphon Positive Pressure Ink Supply
  6pass 12-15㎡/h Head Moisture Auto Head Cleaning and Moisturize
  Method
  8pass 9-11㎡/h Ink Cycle Auto White ink cycle
Ink Type Pigment Ink Transmission Gigabit LAN
Interface
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop
Package Size 1200*960*1000mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
