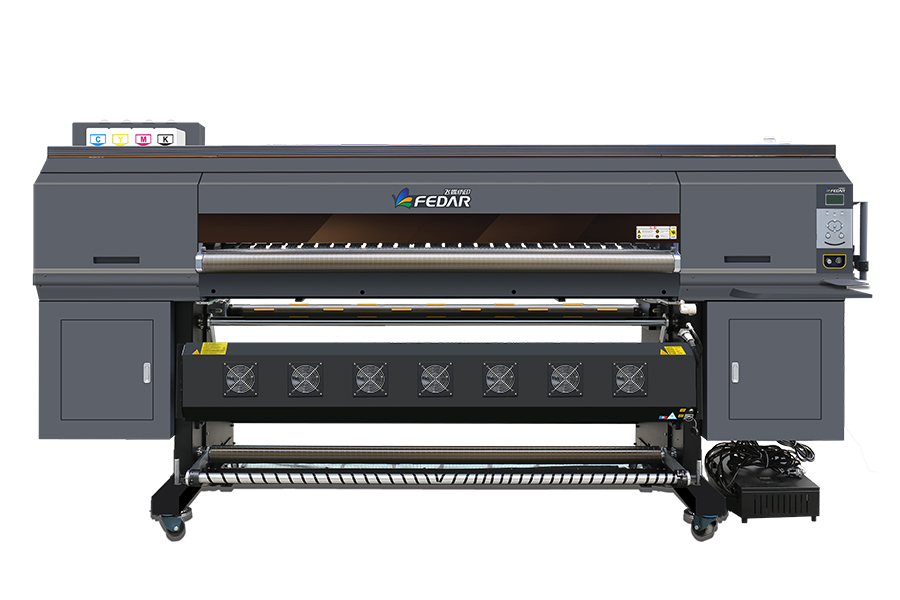

FEDAR FD5198E Sublimation Printer

Mode:

Printheads EPSON I3200-A1

Print Width 1900mm

Resolution 3200

Printheads Quantity 8

Speed 1 PASS 370㎡/h

We're here to help:Easy ways to get the answers you need.

SEND E-MAIL GET PRICE

Describe
Application
Parameter
Inquiry

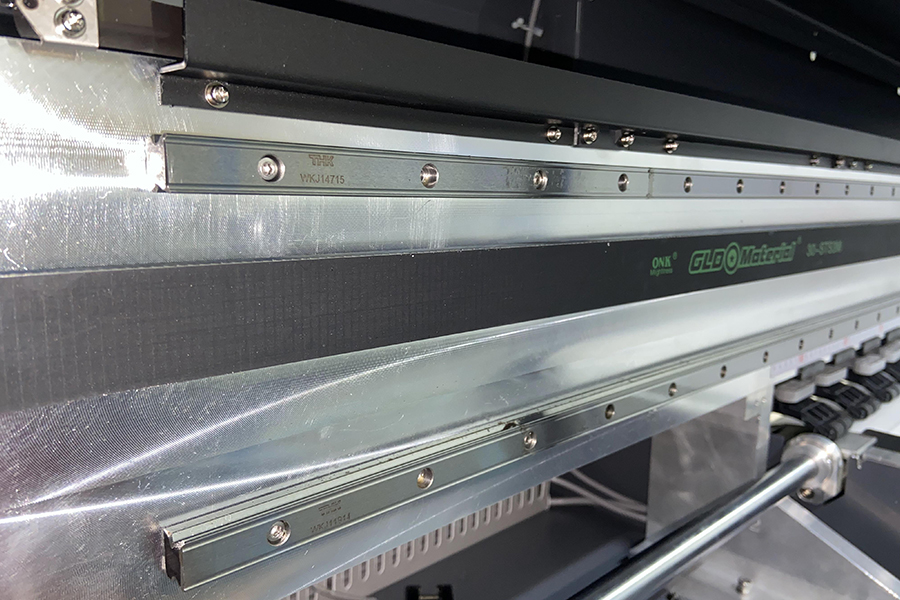

Guide Rails：
New upgrade high strength steel main machine body，New upgrade high strength beam, Double Japanese imported THK 15 Super mute liner grade S guide rail.

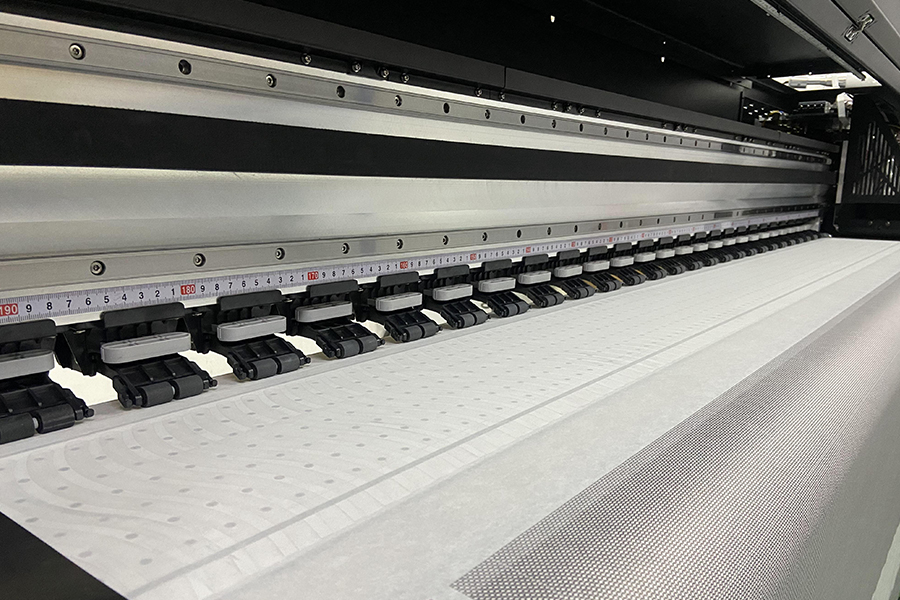

Pinch Rollers：
High precision platform, high strength machine beam,unique S type suction printing platfom ensure printing paper flatness, avoid the drum.

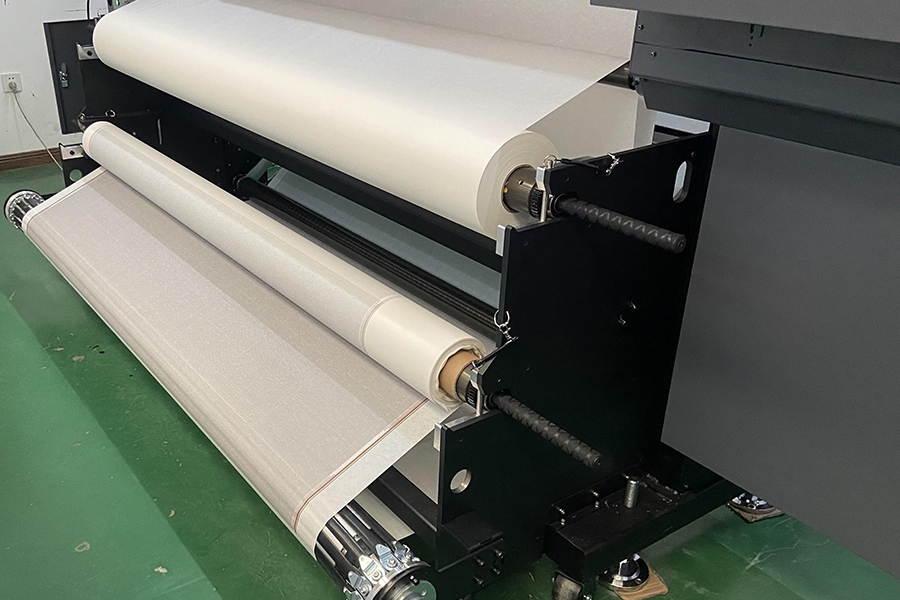

Feed & Take-up System：
Standard configuration 2000m roll feeding up paper optional configuration ten thousand meters base reach the 30g papar(less than 1meter in diameter) printing directly.

Carriage：The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.

FD5198E
Printhead	Epson I3200-A1	Nozzle Quantity	3200
Printhead Quantity	8	Print Width	1900mm
Ink Color	CMYK	Print Height	2-5mm
Resolution	3601200/3601800/ 7201200/7201800(DPI)	Media Transfer	Auto Tension Taking-Up Meida Device
Speed *Tested on linear printing without feather function	1pass 370㎡/h	Drying Method	Extra Dryer Device
	1pass 370㎡/h	Ink Supply Method	Siphon Positive Pressure Ink Supply
	2pass 185㎡/h	Head Moisture Method	Auto Head Cleaning and Moisturize
	2pass 185㎡/h	Print Media	Transfer Paper
Ink Type	Sublimation Ink, Water based Pigment Ink	Transmission Interface	Gigabit LAN
Computer System	Win7, Win8, Win10(Professional)	File Forms	TIFF, JPG, EPS, PDF, etc.
Operate Environment	Temp.:15℃-30℃, Humidity: 35℃-65℃	RIP Software	NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop
Package Size	367012702110mm	Power Supply	210-230V, 50/60HZ, 16A Print Power: 1000W Dryer Power: Max.3500W
Computer Configuration	Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU, Memory: 4G, CPU: Inte I5/I7, G-Ethernet
Standard Configuration	Ink Level Alarm System
