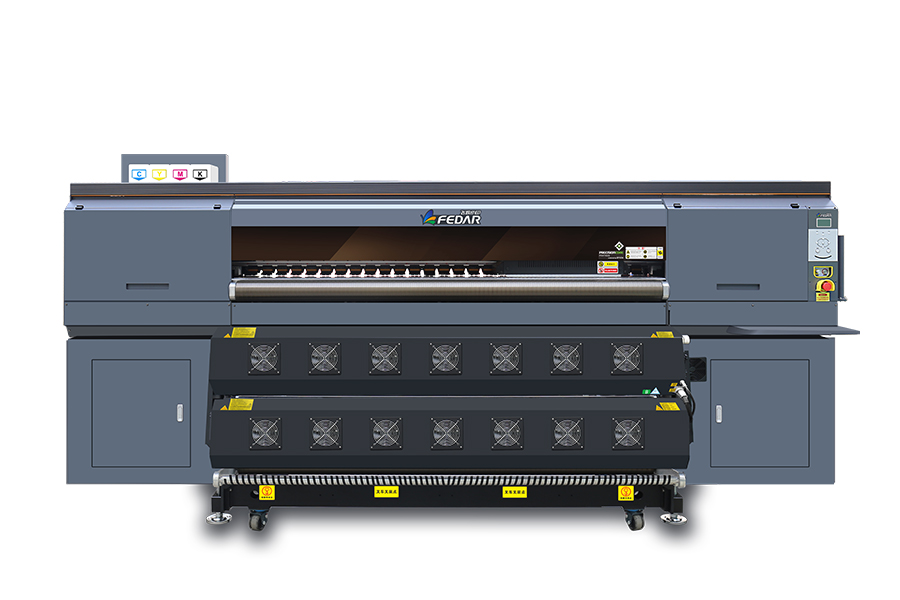

FEDAR FD51915E Sublimation Printer

Mode:

Printheads EPSON I3200-A1

Print Width 1900mm

Resolution 3200

Printheads Quantity 15

Speed 1 PASS 610 ㎡/h

We're here to help:Easy ways to get the answers you need.

SEND E-MAIL GET PRICE

Describe
Application
Parameter
Inquiry

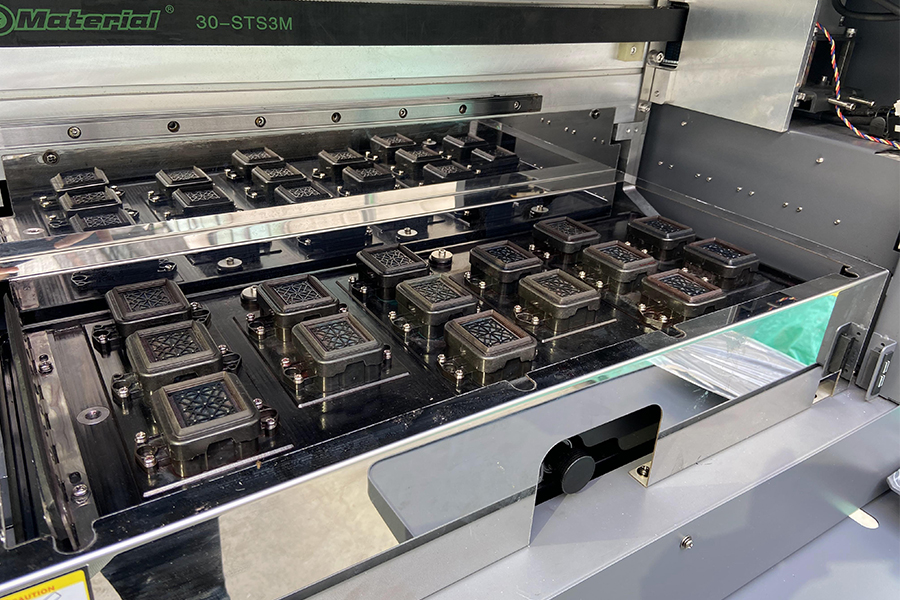

Capping Station:
Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

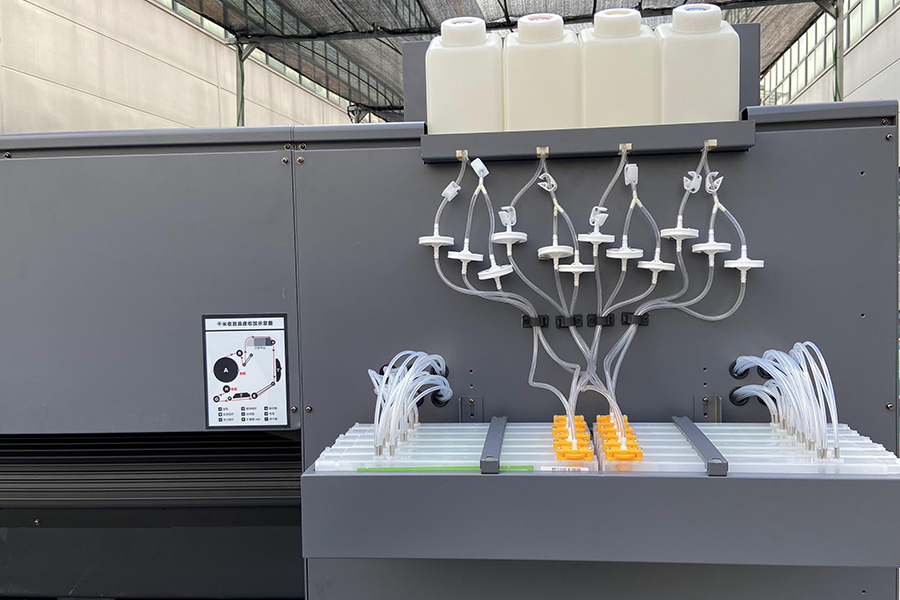

Ink Tanks：
Large-capacity ink cartridges, with a secondary ink supply system to avoid frequent addition of ink.

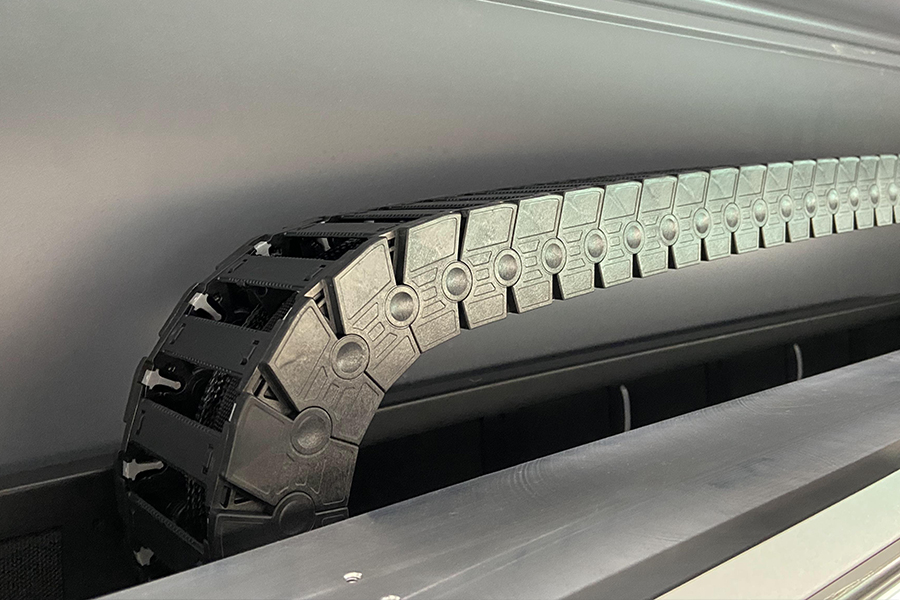

Ink Chain:
Imported Germany IGUS ink chain,high quality, to ensure the good completion of printing work.

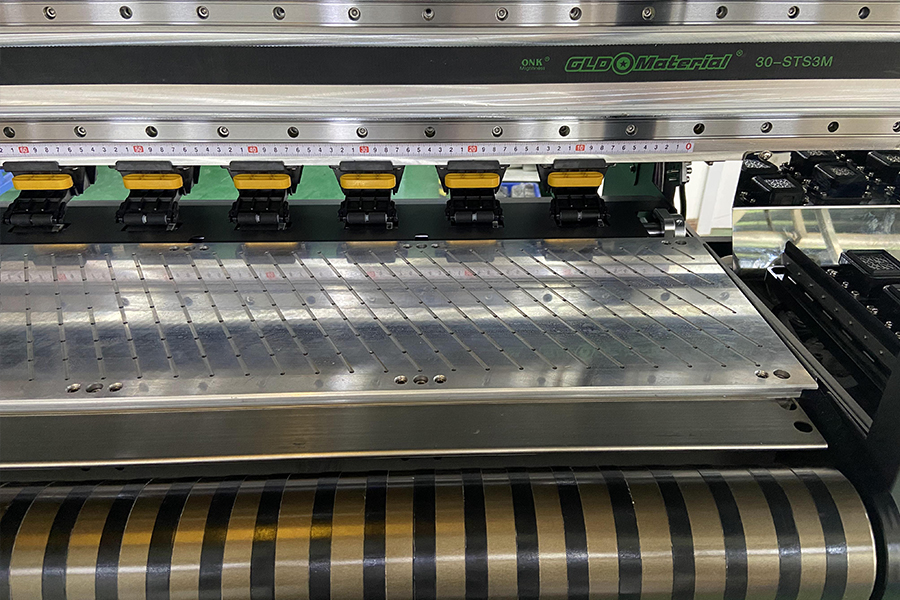

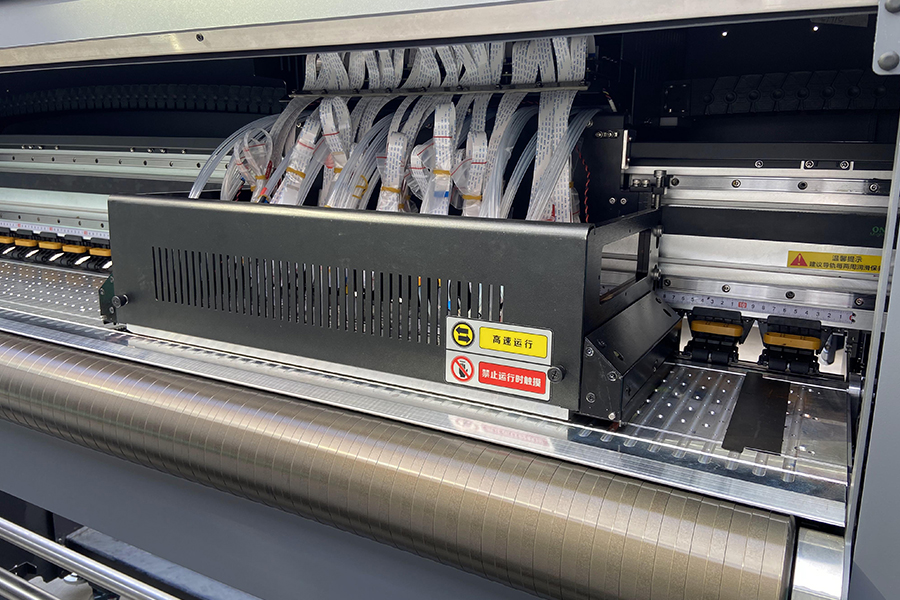

Carriage:
The position of the printhead can be adjusted according to different printing medias and anti-collision devices at both ends.

FD51915E
Printhead	Epson I3200-A1		Nozzle Quantity	3200
Printhead Quantity	15		Print Width	1900mm
Ink Color	CMYK		Print Height	2-5mm
Resolution	3601200/3601800/		Media Transfer	Auto Media Feeding and
	7201200/7201800(DPI)			Taking-up System, Roll to Roll
Speed	1pass	610㎡/h	Drying Method	Extra Dryer Device
*Tested on linear printing without feather function	2pass	300㎡/h	Ink Supply Method	Siphon Positive Pressure Ink Supply
			Head Moisture	Auto Head Cleaning and Moisturize
			Method
	*speed is tested on full-size media		Print Media	Transfer Paper
	without feather function
Ink Type	Sublimation Ink,		Transmission	Gigabit LAN
	Water based Pigment Ink		Interface
Computer System	Win7, Win8, Win10		File Forms	TIFF, JPG, EPS, PDF, etc.
Operate Environment	Temp.:15℃-30℃, Humidity: 35℃-65℃		RIP Software	NeoStanpa,Ergosoft,
				Onyx,Photoprint,Maintop
Package Size	387013202020mm		Power Supply	210-230V, 50/60HZ, 16A
				Print Power: 1500W
				Dryer Power: Max.9000W
Computer Configuration	Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
	CPU: Inte I5/I7, Gigabit LAN
Standard Configuration	Ink Level Alarm System
