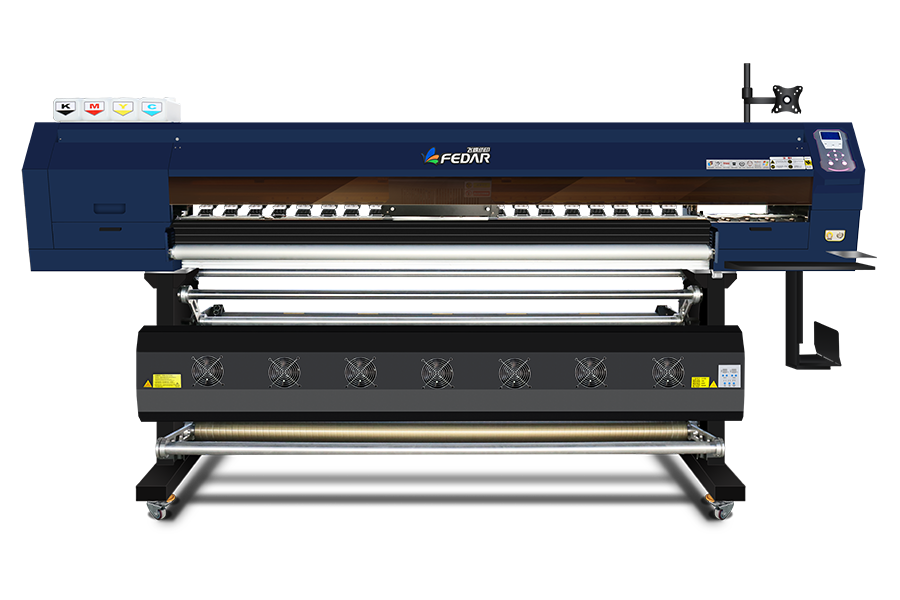

Fedar TC Series Sublimation Printer(3heads,4heads,6heads)

Mode:

Printhead Epson I3200-A1

Head Quantity 3-8 heads

Print Width 1900mm

RIP Software Neostampa/Photoprint/Onyx/Maintop

Taking Media System Air shaft system/Tension system

RIP software Fedar Controll System

Warranty 1 year

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry



Feature

1. THK Guide Rail:
Adopt Japan THK silent linear guide makes the carriage movement is more stable and the life is longer.
2. Printhead:
EPS I3200-A1 printhead adopts TFP technology,with the smallest droplet 2.5PL,variable dots technology,can ensure perfect and high resolution printing performance.
3. Platform:
Platform adopts 8mm aluminimum alloy,which can reduce the shape variables during transportation.
4. Pinch Roller:
Specially designed pinch roller to ensure more accurate media movement.
5. Leadshine Motor:
Leashine server motor driver,high resolution and stable.

Detail

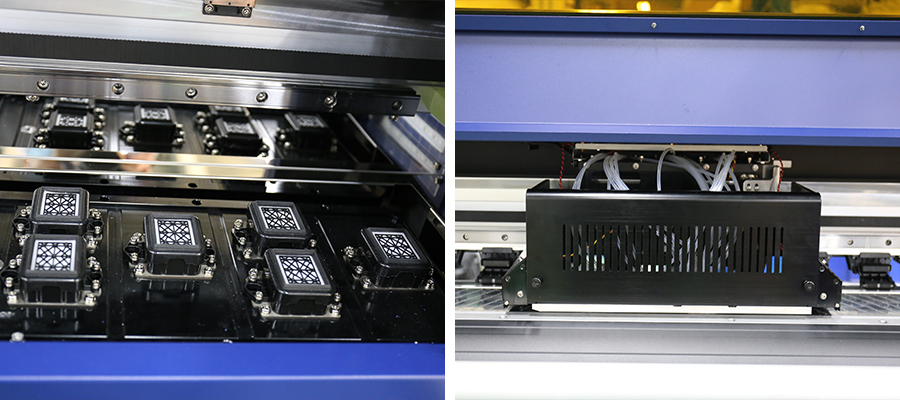

Capping Station:
Equipped with advanced intelligent printhead cleaning and moisturizing device, its cleaning can be done directly on the printer.
Carriage:
Anti-collision devices of carriage are added at both ends to provide more comprehensive safetyprotection for printheads.

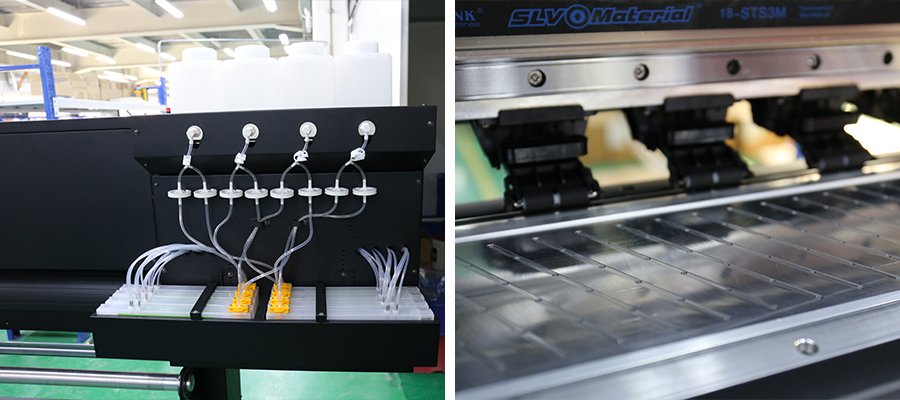

Ink Tank:
Ink tank connect wires design is more tidy and convenient to check ink supply.
Pinch Roller:
Adopt multi-row pinch roller made of American rubber eliminating statics,high printing quality and accurate media feeding.

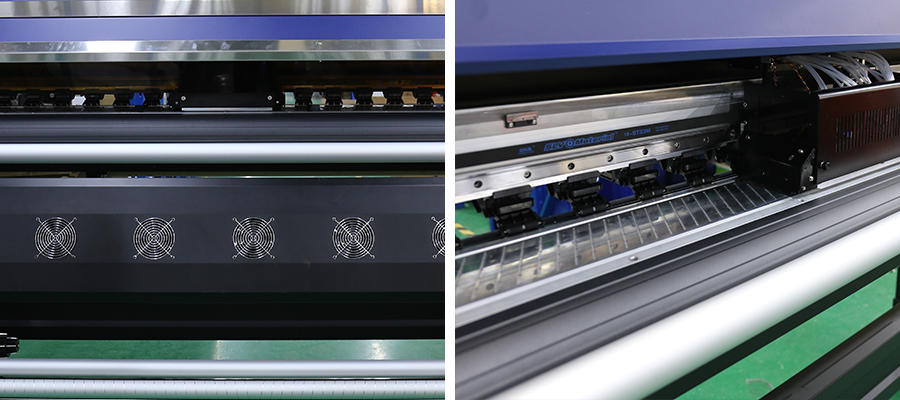

Drying System:
Independent R D infrared and drying fans can dry printing materials in short time.
Platform:
Finish maching aluminum platform and beam.



Fedar Sublimation Printer mainly business area:

1. Fedar printer can printing transfer paper type 35-100gram
2. Transfer materials: polyester, fabric, etc
3. Detail use range: Sportwear, dress, curtain, bed sheet, decoration, carpet, etc.





Model

TC1943

TC1944

TC1946

Printhead

Epson I3200-A1

Quantity

3

4

6

Print Speed
*Tested on linear printing without feather function

3pass

85㎡/h

2pass

170㎡/h

2pass

240㎡/h

4pass

65㎡/h

3pass

110㎡/h

4pass

120㎡/h

6pass

45㎡/h

4pass

85㎡/h





Print Width

1900mm

Ink Type

Type: Sublimation Ink, Water-based ink(Dye or Pigment),
Color:CMYK

Print Media

Transfer Paper(from 40gsm to 100gsm)

Material Transmit

Tension System
(Optional: Inflatable Roller System)

Inflatable Roller Auto
Feeding and Taking Media System

Inflatable Roller Auto
Feeding and Taking Media System

Dryer

Extra Intelligent Dryer

Moisture Model

Full Seal Auto Moisture and Cleaning

Rip Software

Maintop6.0, Photoprint19, Onyx 19, Neostampa

Image Format

JPG, TIFF, BMP, PDF, etc.

Computer System

Win7 64bits ,Win8 64bits ,Win10 64bits

Transmit Port

Gigabit Port

Computer Configuration

Hard Disk: 500G or more, GPU: ATI Mobility Memory 4G
Random Access Memory: 8G
CPU: Intel 4 I5/I7 processor or above

Device

Lack Ink Alarm System

Working Environment

Temp.:18-30,  Humidity: 35-65

Power

50/60HZ, 210-230V, 16A
Print Power: 1000W
Dryer: Max. 5500W

Machine Size

3070*1550*962mm

Packing Size

3260*960*1070mm

3380*1030*1790

3460*950*1115mm

Inflatable Roller Package: 2780*1030*1060mm
