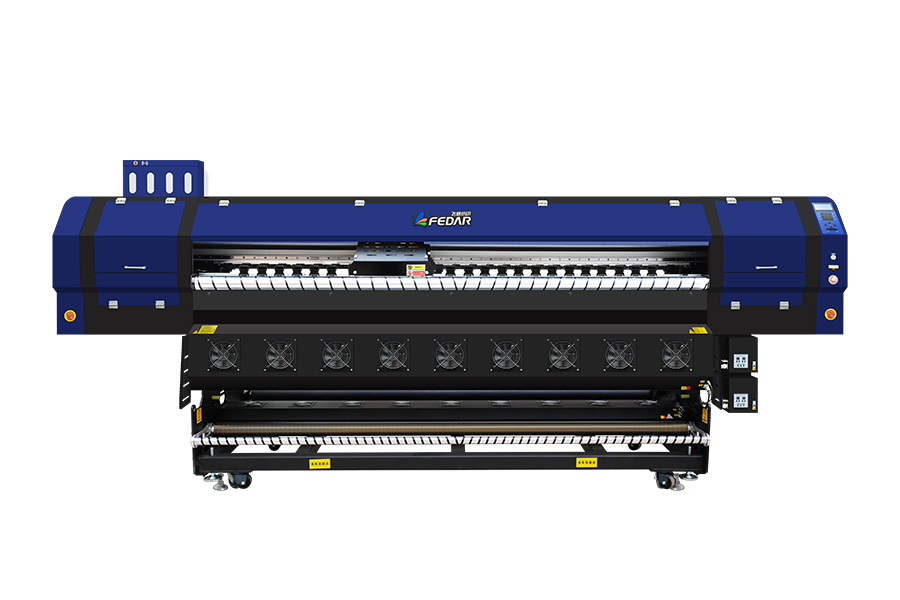

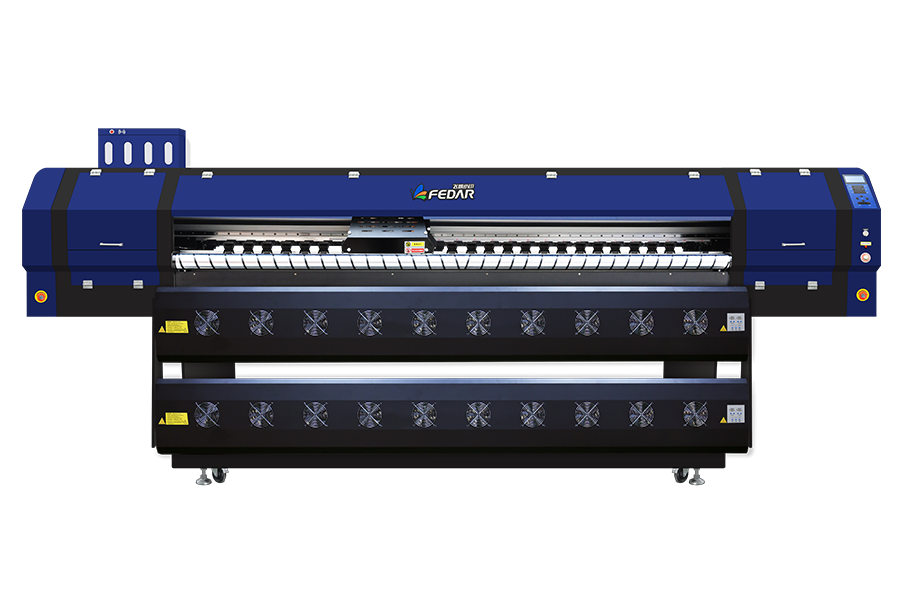

FD5268E 2.6m Printer

Mode:

Printhead Epson I3200-A1

Max. Speed 300 ㎡/h

RIP Software Neostampa, Ergosoft, Onyx, Photoprint

Transfer Paper Over 40 gsm

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

Feature:

1. 8 EpsonI3200-A1 printhead,2 pass speed can reach up to 260 sqm/h.
2. Adopt two-level ink supply system to ensure continuous printing for a long time.
3. Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to add ink in time.
4. Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function.
5. Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.

Detail:

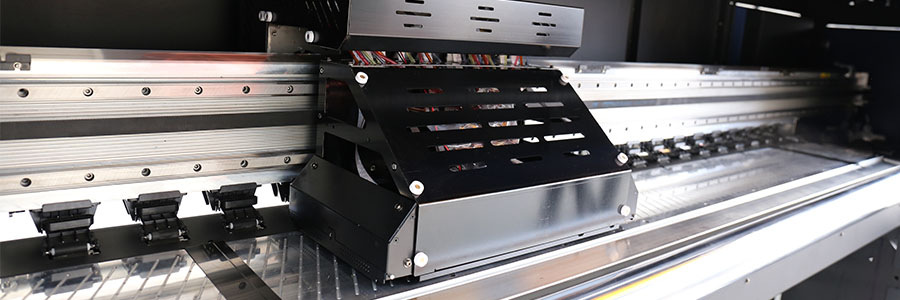

FD6198E 8 heads carriage configuration with Anti-Collision system which can protect the printhead well.


Uniquely design for printer carriage, more easier to operate and maintenance.

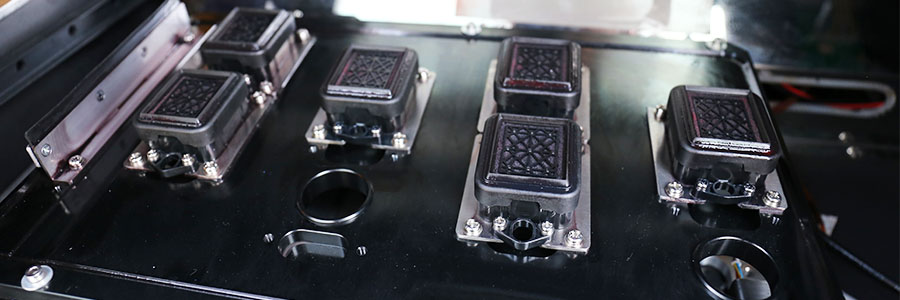

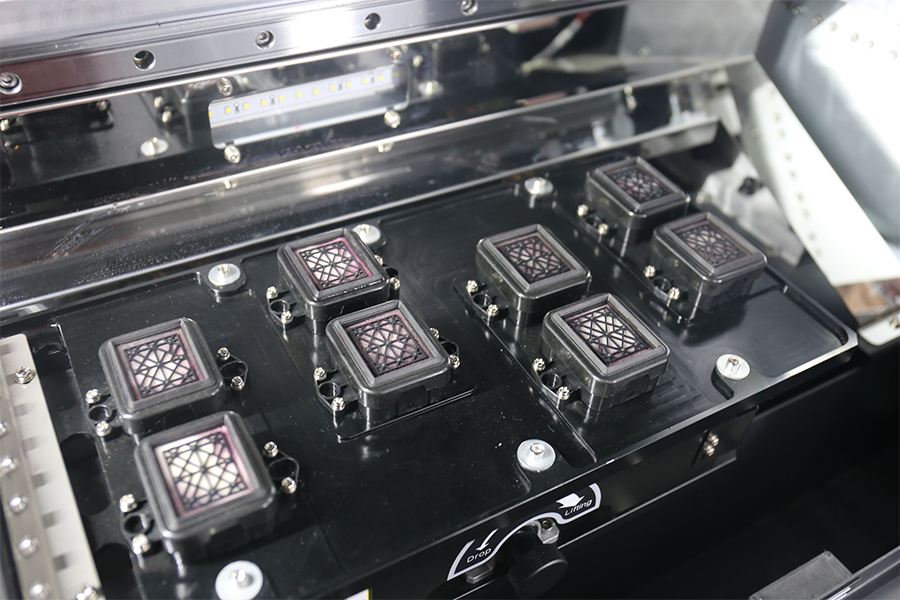

Profesional 8 heads capping station(which can modify into 8 heads configuration)---Exclusive printhead sequence design which can support 1pass print.


Adop big wipper to save head cleaning time/ Add the capping staion light to help check the calibration between head and capping core position.

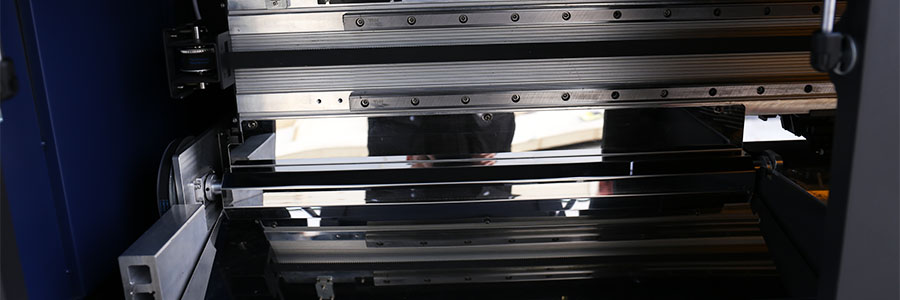

Industril level---double THK guide rail, ensure carriage move faster and precisely, and eliminate motion noise.


45% titled mirror which is better design to check printhead surface directly.



Industrial Leadshine servo motor and driver which will keep longer time working precisely.


High precision gear and beam, which all service to work stability and longer lifetime(24 hours work time everyday).

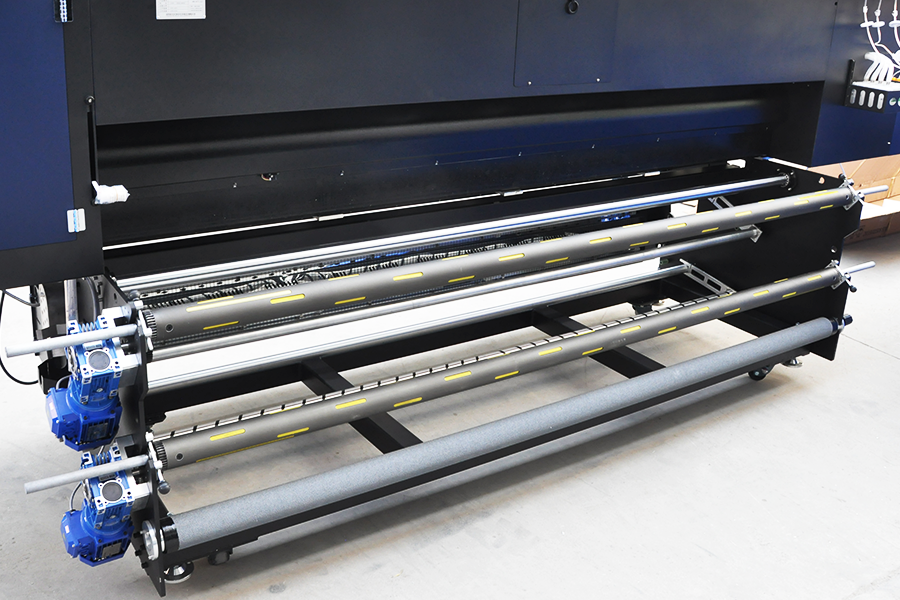

Industrial media feeding and taking up system---support using 30 gsm transfer paper and loading 1000m-2000m normal transfer paper.

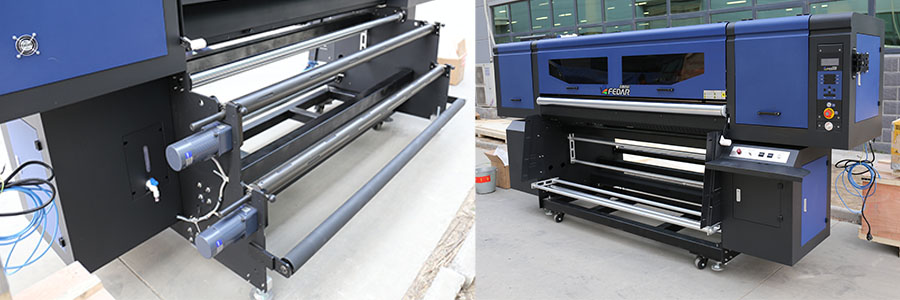

Integrated printer body design which will avoid print accuracy change during transport or long time work.

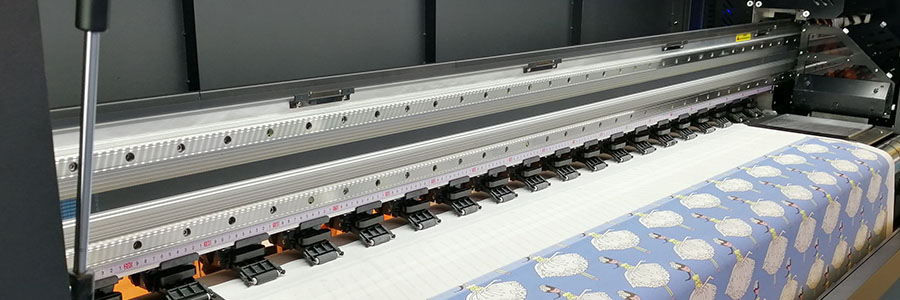

Choose intelligent anti-static pinch roller, avoding transfer paper from wrinkling. Add the ruler to help reset the print position.


Using import Igus ink chain to eliminate noise.







FD5268E

Printhead

Epson I3200-A1

Nozzle Quantity

3200

Printhead Quantity

6(*8 is optical)

Print Width

2600mm

Ink Color

CMYK

Print Height

2-5mm

Resolution

360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer

Auto Media Feeding and
Taking-up System, Roll to Roll

Speed
*Tested on linear printing without feather function

2pass

300㎡/h

Drying Method

Extra Dryer Device

4pass

150㎡/h

Ink Supply Method

Siphon Positive Pressure Ink Supply

6pass

90㎡/h

Head Moisture
Method

Auto Head Cleaning and Moisturize

*speed is tested on full-size media
without feather function

Print Media

Transfer Paper

Ink Type

Sublimation Ink,
Water based Pigment Ink

Transmission
Interface

Gigabit LAN

Computer System

Win7, Win8, Win10

File Forms

TIFF, JPG, EPS, PDF, etc.

Operate Environment

Temp.:15℃-30℃,  Humidity: 35℃-65℃

RIP Software

NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3900*1340*1920mm

Power Supply

210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W

Computer Configuration

Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN

Standard Configuration

Ink Level Alarm System
