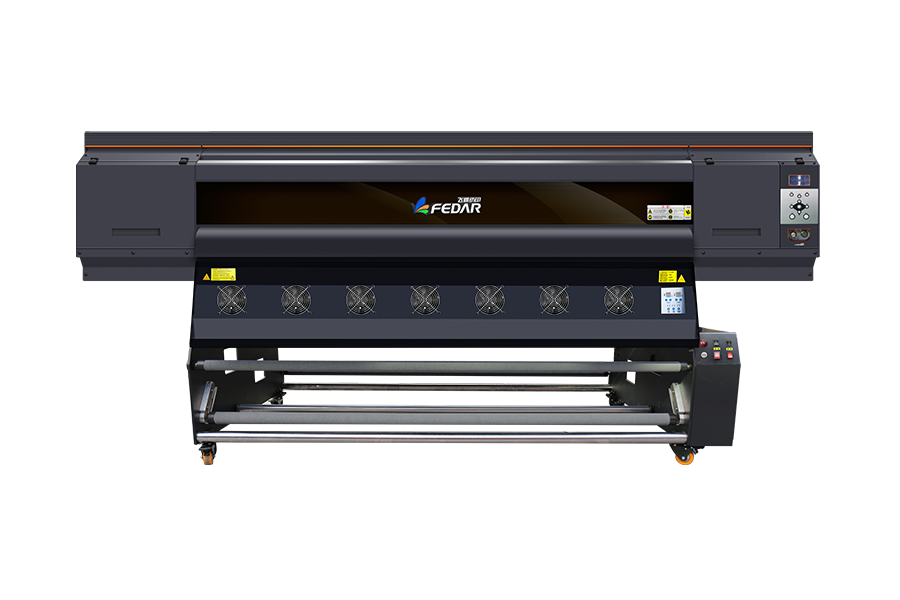

FD5196E 6 Heads Printer

Mode:

Printhead 6pcs Epson I3200-A1

Max. Speed 200 m2/h

Print Width 1900mm

Transfer Paper Over 40 grm

Ink Type Water Based Pigment/Sublimation Ink

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry













FD5196E

Printhead

Epson4720

Nozzle Quantity

3200

Printhead Quantity

6

Print Width

1900mm

Ink Color

CMYK

Print Height

2-5mm

Resolution

360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer

Auto Media Feeding and
Taking-up System, Roll to Roll

Speed
*Tested on linear printing without feather function

2pass

200/h

Drying Method

Extra Dryer Device

4pass

120/h

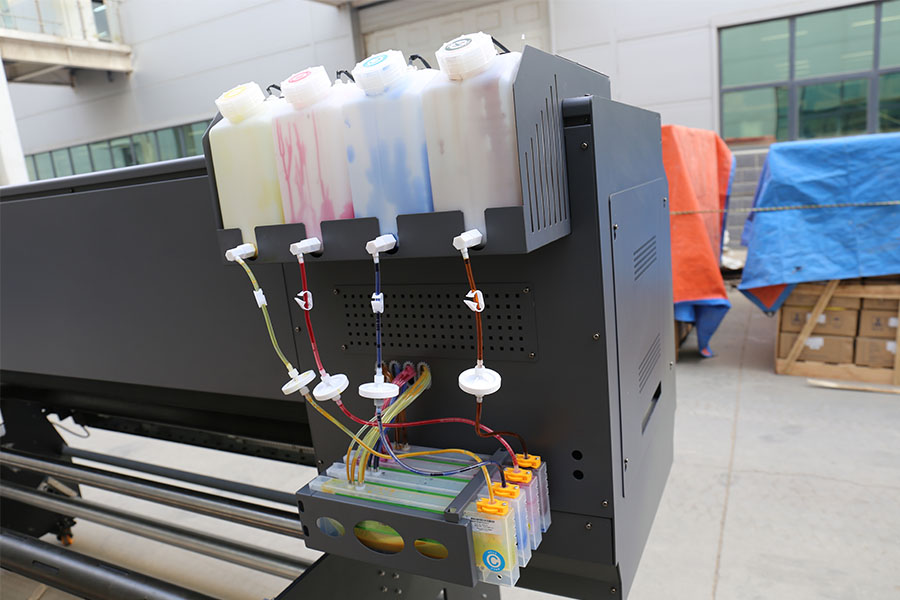

Ink Supply Method

Siphon Positive Pressure Ink Supply

6pass

60/h

Head Moisture
Method

Auto Head Cleaning and Moisturize

*speed is tested on full-size media
without feather function

Print Media

Transfer Paper

Ink Type

Sublimation Ink,
Water based Pigment Ink

Transmission
Interface

Gigabit LAN

Computer System

Win7, Win8, Win10

File Forms

TIFF, JPG, EPS, PDF, etc.

Operate Environment

Temp.:15℃-30℃,  Humidity: 35℃-65℃

RIP Software

NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3900*1340*1920mm

Power Supply

210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.9000W

Computer Configuration

Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN

Standard Configuration

Ink Level Alarm System
