FD 6194E 4 Heads Printer

Mode:

Printhead 4pcs Epson I3200-A1

Max. Speed 150 m2/h

Max. Print Width 1900mm

Ink Type Sublimation ink/Water based pigment

RIP Software Neostampa, Photoprint, Onyx, Maintop

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry


Feature
1. High-end Softwar:Using international high-end software, the drawing is more realistic.

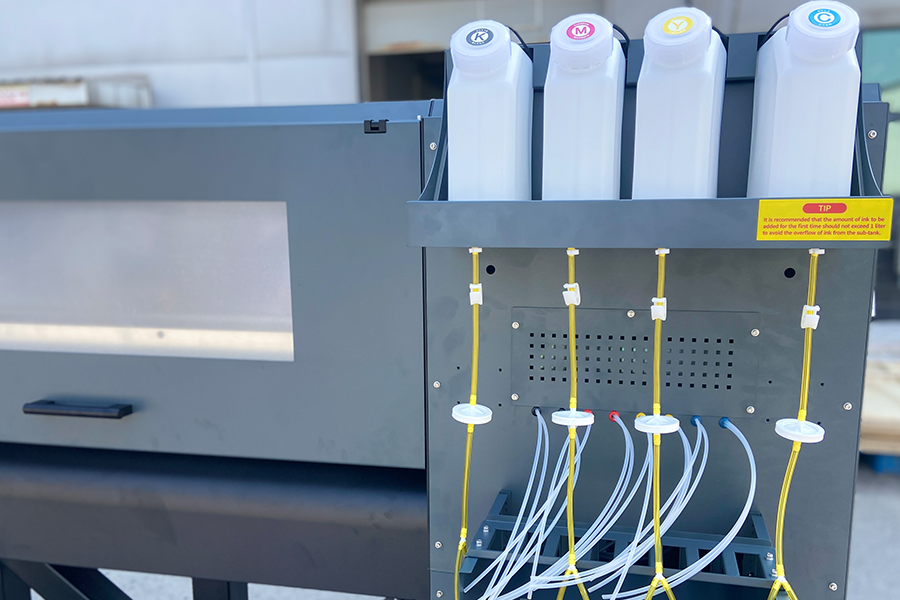

2. Intelligent Ink Starving Alarm:Reduces the tediousness of frequently checking the remaining amount of ink, and at the same time reminds to
add ink in time to ensure the continuity of printing work.

3. Intelligent Foggy Printing & VSDT Printing:Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable droplet
techonology, improve printing quality obviously.

4. Using Advanced Capping Station:Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe and convenient
printhead cleaning and maintenance functions, more convenient operation and maintenance.

5. Stable Media Feeding and Take-up System:Convenient,the printing media is quickly stored,equipped with automatic paper measurement and
anti-rubbing function,the consumables are warped,printing is automatically paused to prevent scratching the printhead.


Detail

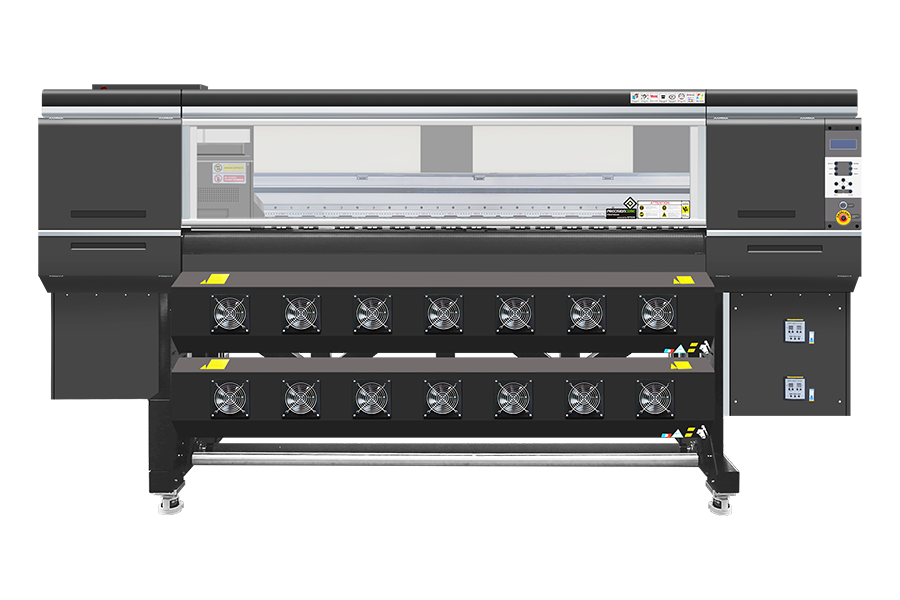

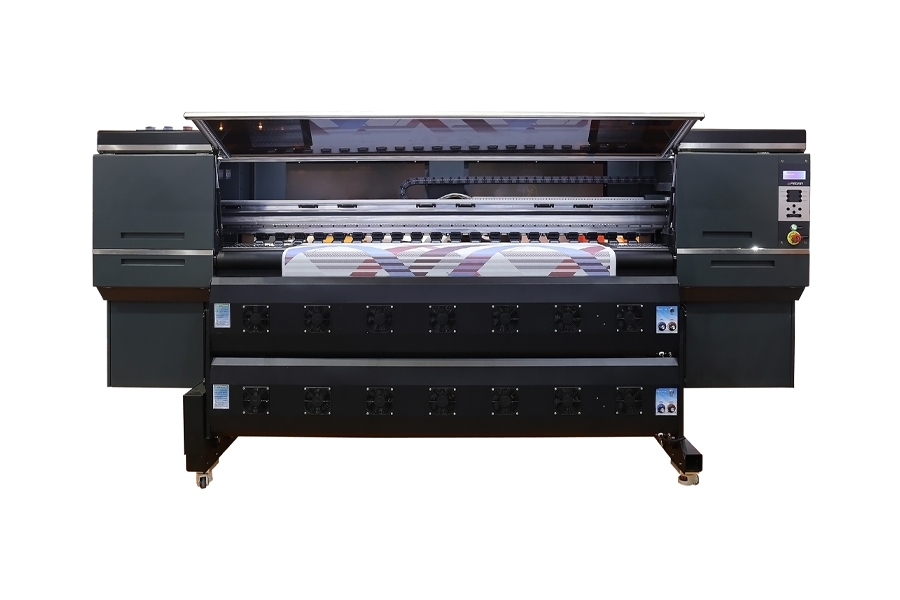

Fedar FD6194E Four Heads Sublimation Printer

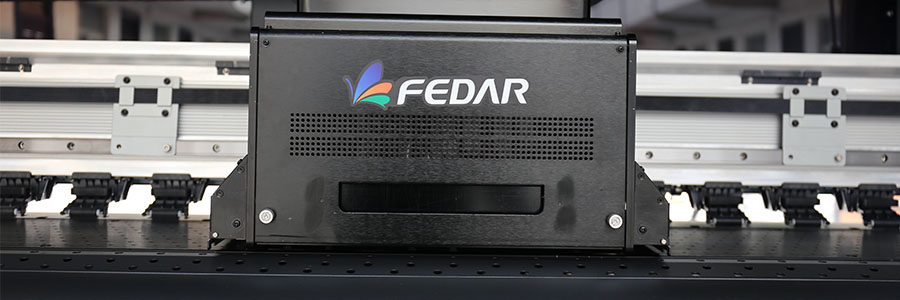

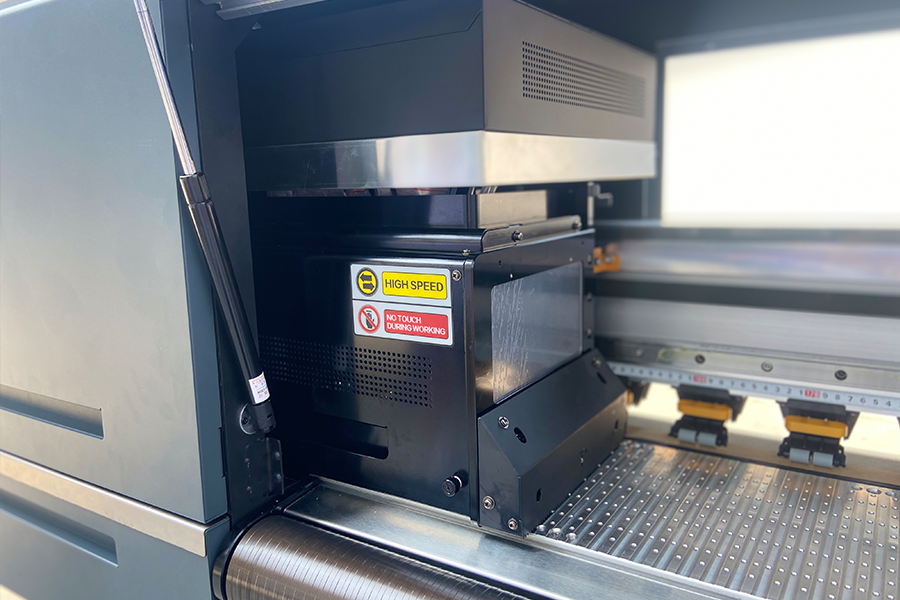

FD6194E 4 heads carriage configuration with Anti-Collision system which can protect the printhead well

Uniquely design for printer carriage, more easier to operate and maintenance

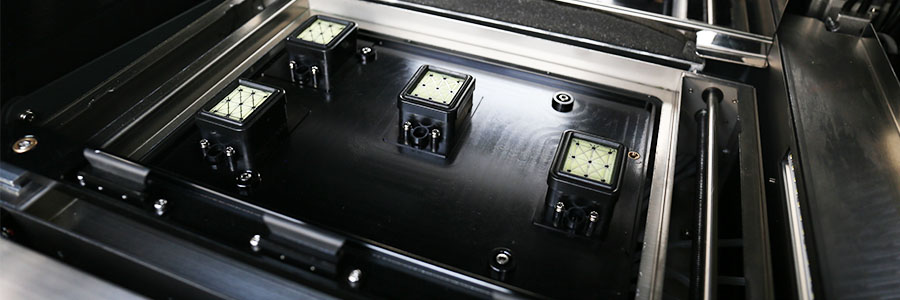

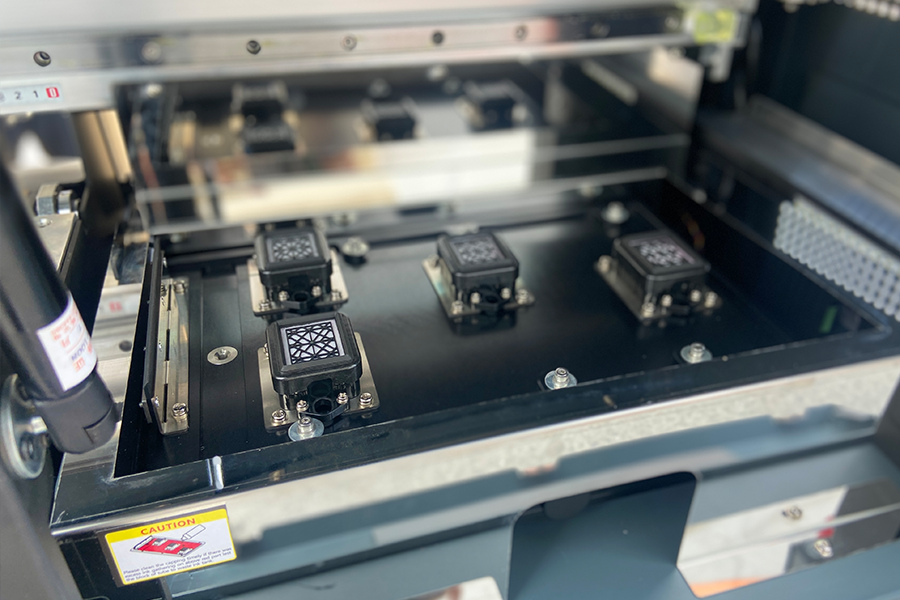

Profesional 4 heads capping station---Exclusive printhead sequence design which can support 1pass print




Adop big wipper to save head cleaning time/ Add the capping staion light to help check the calibration between head and capping core position




Industril level--- THK guide rail, ensure carriage move faster and precisely, and eliminate motion noise


45% titled mirror which is better design to check printhead surface directly

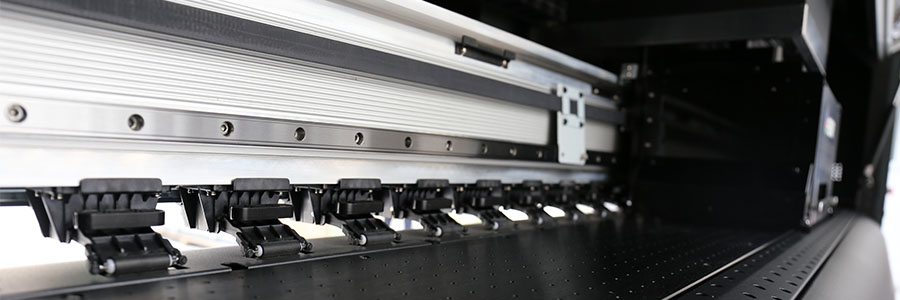

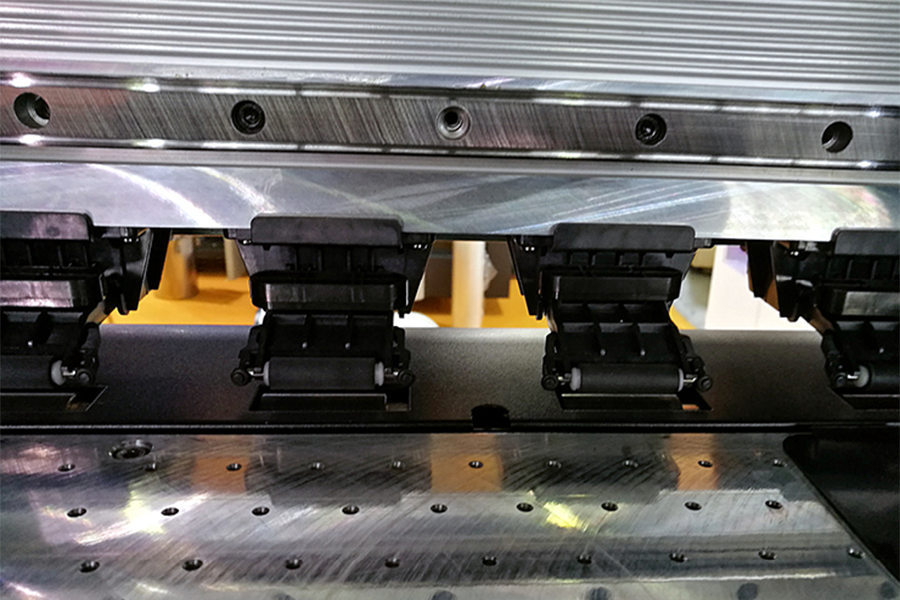

Choose intelligent anti-static pinch roller, avoding transfer paper from wrinkling. Add the ruler to help reset the print position


Using import Igus ink chain to eliminate noise

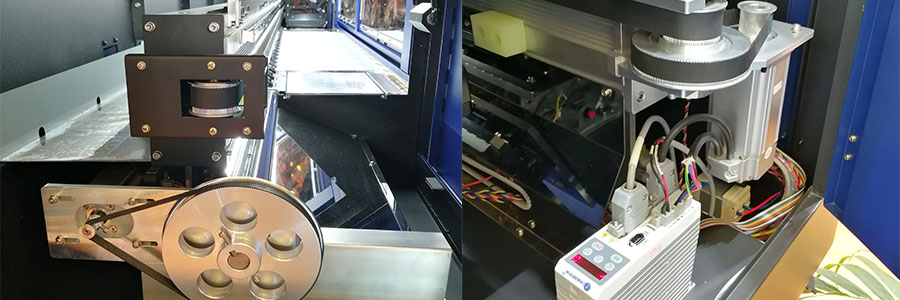

Industrial Leadshine servo motor and driver which will keep longer time working precisely


High precision gear and beam, which all service to work stability and longer lifetime(24 hours work time everyday)

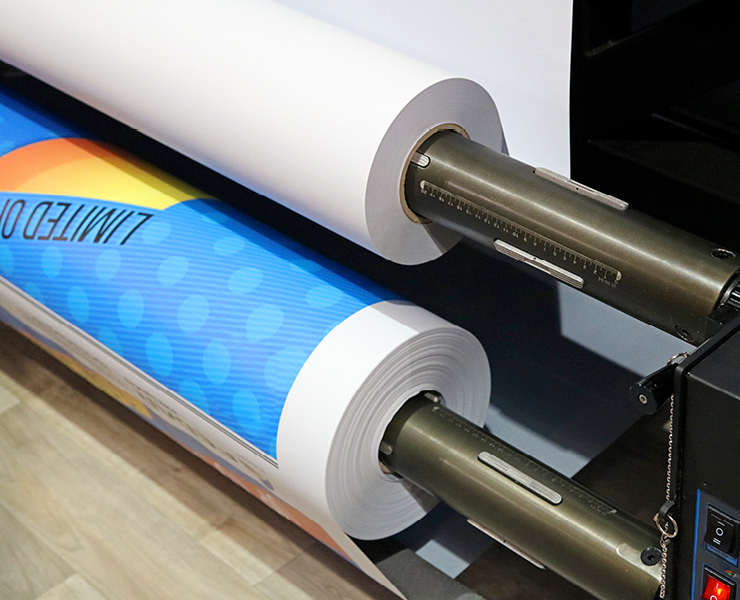

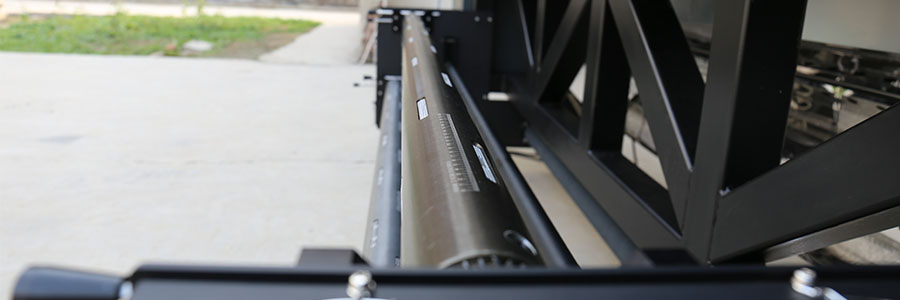

Industrial media feeding and taking up system---support using 30 gsm transfer paper and loading 1000m-2000m normal transfer paper


Integrated printer body design which will avoid print accuracy change during transport or long time work

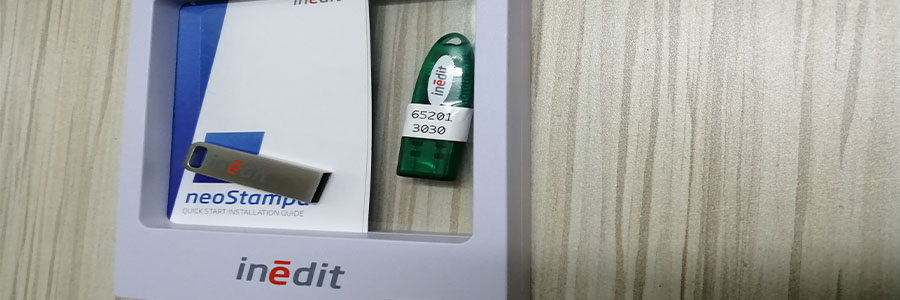

Professional should support the professional RIP softwarw which can improve production quality and efficient.


Fedar sublimation printer provide Neostampa, Ergosoft, Onyx, Photoprint.














FD6194E

Printhead

Epson I3200-A1

Nozzle Quantity

3200

Printhead Quantity

4

Print Width

1900mm

Ink Color

CMYK

Print Height

2-5mm

Resolution

360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer

Auto Media Feeding and
Taking-up System, Roll to Roll

Speed
*Tested on linear printing without feather function

2pass

150/h

Drying Method

Extra Dryer Device

4pass

110/h

Ink Supply Method

Siphon Positive Pressure Ink Supply

6pass

90/h

Head Moisture
Method

Auto Head Cleaning and Moisturize

*speed is tested on full-size media
without feather function

Print Media

Transfer Paper

Ink Type

Sublimation Ink,
Water based Pigment Ink

Transmission
Interface

Gigabit LAN

Computer System

Win7, Win8, Win10

File Forms

TIFF, JPG, EPS, PDF, etc.

Operate Environment

Temp.:15℃-30℃,  Humidity: 35℃-65℃

RIP Software

NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3458*1150*1780mm

Power Supply

210-230V, 50/60HZ, 16A
Print Power: 1500W
Dryer Power: Max.7000W

Computer Configuration

Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I5/I7, Gigabit LAN

Standard Configuration

Ink Level Alarm System
