Printhead Epson I3200-E1/A1

Head Quantity 1/2

Colors Double Four Color

Number of Nozzles 3200

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop/Photoprint/Onyx

Operating system Win7/10

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

1.Double four-color printing,1.6m and 1.80m wide format output
2.Indoor and outdoor ink are both available, meeting different printing needs.
3.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4.Printing resolution can reach to 3200dpi,even the word is small as 0.5mm.
5.Three different sizes of dots,achieving the complement of images,even under high speed or low resolution

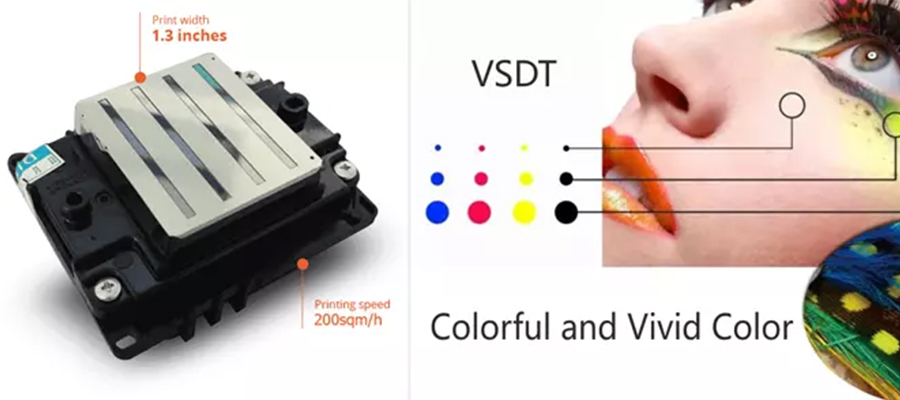

EPS I3200-A1 has 3200 nozzles and print width reach to 1.3 inches which can improve the printing speed greatly,variable dot technology,3 sizes
of dots can be generated for smoother gradation,vivid colors and sharp images.

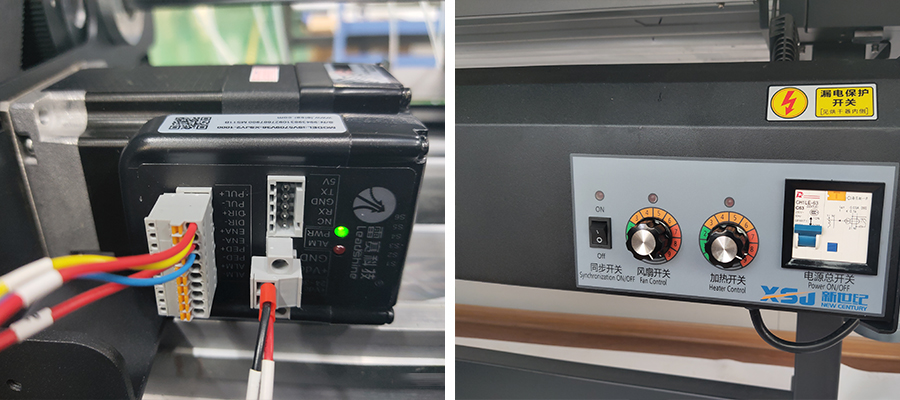

Leadshine Motor:
Leadshine server motor driver,quality assurance,high resolution and stable.
Drying System:
The intelligent drying system is synchronized with printing,the temperature can be adjusted in real time during the printing process.

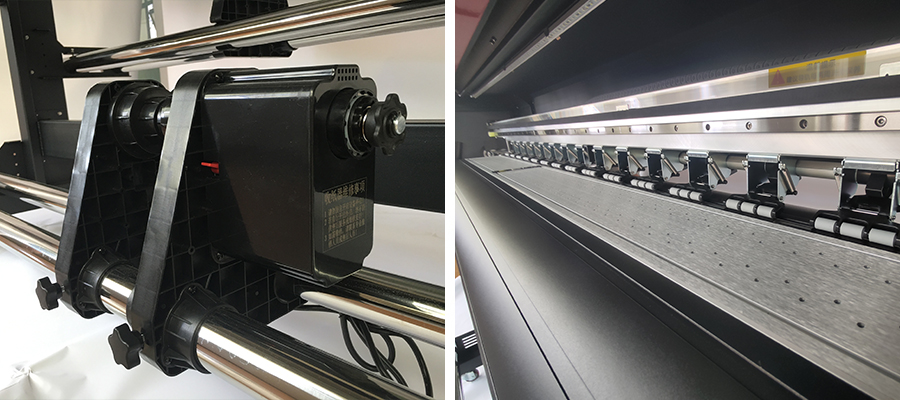

Feed & Take-up System:
Convenient and fast,the printing media is quickly stored,equipped with automatic paper measurement and anti-rubbing function.
The printing platform is controlled within +7.5/-7.5 wires and the surface hard oxidation treatment,no deformation for a long time.


Optional Items
1,Hiwin guide rail,more stable,longer working life,lower noise.
2,Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3,Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4,Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5,VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6,Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7,Different kinds of printing mode,reach to 28m per hour in production mode.

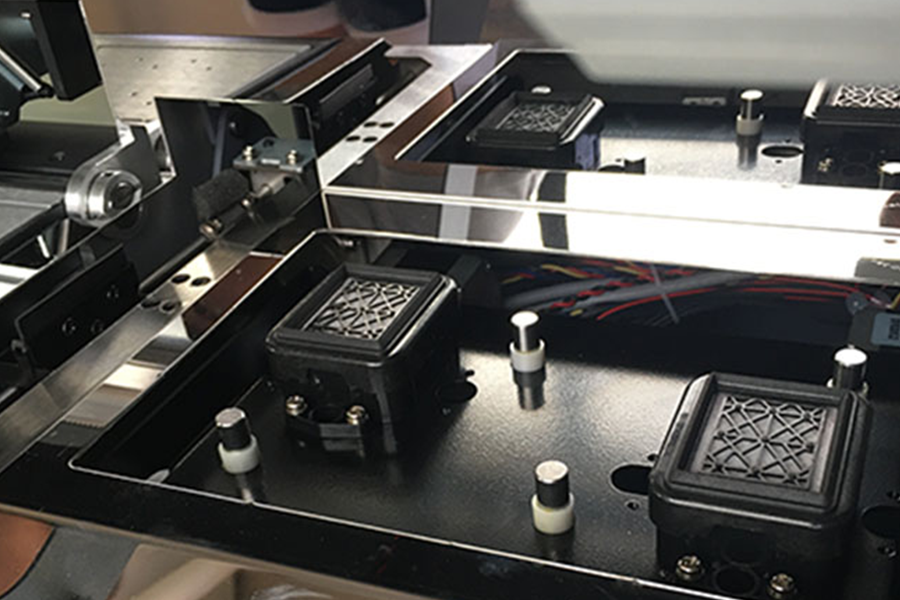

8,High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.
9,Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10,Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.


Widely applications for Stormjet model:

1. Normal outdoor sign and indoor sign---Banner, vinyl, mesh, pvc, photo paper, etc.

2. Transfer paper over 60 gram

Printhead Type: Epson I3200-E1
Number of Nozzles: 3200(1PC)
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Type: Epson I3200-A1
Number of Nozzles: 3200(1PC)
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing
Quantity 1 2 1 2
Print Speed
*Tested on linear printing without feather function
2pass 30㎡/h 80㎡/h 2pass 30㎡/h 80㎡/h
3pass 25㎡/h 55㎡/h 4pass 25㎡/h 55㎡/h
4pass 20㎡/h 40㎡/h 6pass 20㎡/h 40㎡/h
6pass 15㎡/h 30㎡/h 8pass 15㎡/h 30㎡/h
Data Transmission Port Giga-bit Ethernet Port
Print Width 1600mm
Ink Type Type: Water-based ink(Dye or Pigment), Eco Solvent Ink, Sublimation Ink
Print Media PP, PVC, Vinyl, Flex Banner, Backlit, Mesh, etc.
Rip Software Maintop, Photoprint, Onyx
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win10
Transmit Port Network Port
Computer Cofigiration Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above
Optional Device Heat System: Extra Dryer Device
Working Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃
Power Supply 50/60HZ, 220V, 5A
Machine Size Machine Size: 2502*842*1240mm
Printer Packing Size: 2680*860*750mm
Machine Weight 240kg
