New F1-4


Printhead 4pcs I3200-A1

Head Quantity 4

Colors 4 or 8 colors

RIP Software Flexi, Onyx, Maintop

Print Width 1850mm

Warranty 12 months

Printing Material Vinyl, Blurpaper, Mesh, Banner, etc.

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

New Machine, New Design, New Performace!

New F1 adopt industrial body design, using more stronger beam and platform, ensure long time printing stability.

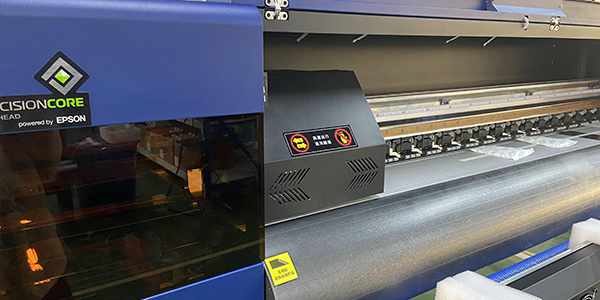

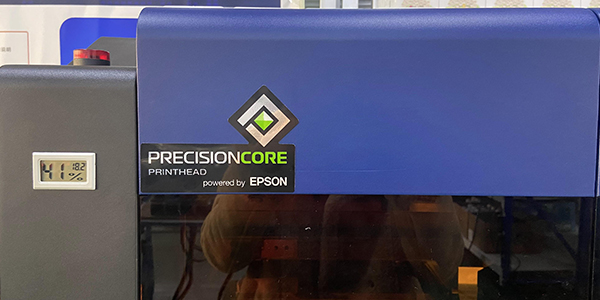

Machine add temperature and humidity sensor which can let customer change woking environment, and machine use original epson printhead which powered by Epson Company directly.

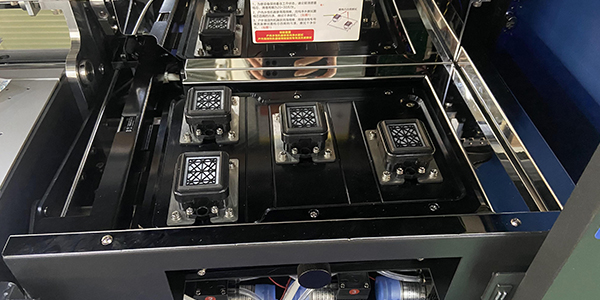

Smart capping station and printhead sequence, which can improve more faster speed and better eliminate banding effect.

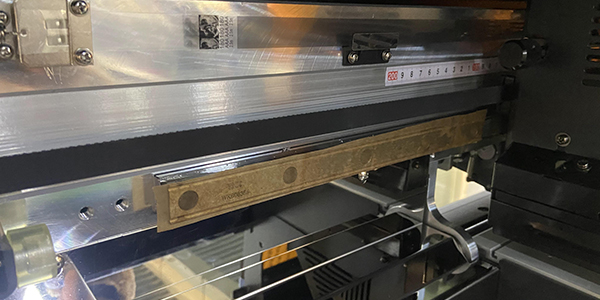

Still use import THK guide rail and using new protect way during shipping.

Intelligent mirror design which can check printhead surface easy.

New F1-4
Printhead Type: I3200A1 Type: I3200E1
Quantity 4
Print Speed
*Tested on linear printing without feather function
2pass 139㎡/h 2pass 139㎡/h
3pass 108㎡/h 3pass 108㎡/h
4pass 82㎡/h 4pass 82㎡/h
6pass 56㎡/h 6pass 56㎡/h
Print Width 1850mm
Ink Type Type: Water-based ink(Dye or Pigment), Sublimation Ink
Type: Eco Solvent Ink
Print Media Indoor advertising material, Transfer Paper PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc.
Rip Software Maintop6.0, Photoprint19, Onyx 19
Image Format JPG, TIFF, BMP, PDF, etc.
Computer System Win7,Win8,Win10
Transmit Port USB 3.0
Computer Cofigiration Operate System: Win7/Win10   Interface: Giga-bit Ethernet Port  Hard Disk: 500G or more,
GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel I7 3.0GHZ above
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System
Working Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃
Power Supply 50/60HZ, 220V, 10A
Package Machine Size 3130*940*1080m
 Machine Weight 300kg
