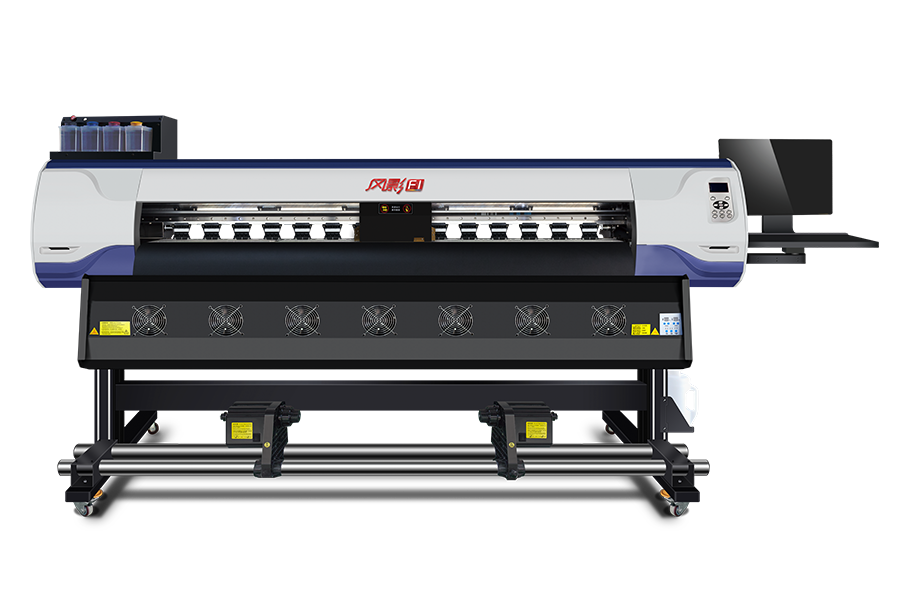

F1

Mode:

Printhead Epson Dx5/Epson I3200

Head Quantity 4

Ink Type Eco solvent ink, water-based ink, sublimation ink, etc

Taking up system Tension system

RIP software Photoprint, Onyx

Warranty 15 months

Application PP, Vinyl, Banner, Back-lit, Mesh, Canvas, etc.

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry




Feature
1. Adjustable carriage frame, applicable for different thickness of media. Max printing height is 5mm.





2. Multi-row independent pinch rollers,which can be lifted seperately, ensure the media moving without wrinkle.





3. Imported Japanese THK linear guide rail makes carriage movement smooth and low noise.





4. Intelligent infrared heating & blowing external dryer accelebrates media drying speed, meanwhile heating and printing





can be synchronous to reduce the energy waste.





5. Head maintenance can be done from printer directly without connecting computer.





6. Support calibration settings export and import, more convinient on operation and service.

Detail





Maintenance Station:
Patented designed maintenance capping station .It's lifted up and down via column driven by motor in the middle,which greatly maintain the balance
of capping comparing the traditional gear dive.
Drying System:
Three ways heating system , front ,middle,back individual,improve the printing quality.







Feeding & Take-up System:
Motor Feeding & Take-up unit is standard equipped.
Pinch Roller:
Special designed pinch roller,each one can be lifted seperately to eliminate the wrinkle caused by media.



Carriage:
Adjustable carriage frame,applicate for different thickness of media.Max printing height is 5mm.
Guide Rail:
Using Janpan THK mute linear guide rail,the movement is more stable and the life is longer.




PP , Vinyl , Banner , Back-lit , Mesh , Canvas , All eco solvent ink materails





F1-4

Printhead

Type: Epson Dx5
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing

Type: Epson I3200
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing

Quantity

4

Print Speed
*Tested on linear printing without feather function

2pass

80/h

2pass

139/h

4pass

65/h

3pass

105/h

6pass

51/h

4pass

82/h

8pass

40/h

6pass

56/h

Print Width

1850mm

Ink Type

Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Color:CMYK

Type: Water-based ink(Dye or Pigment),  Sublimation Ink
Color:CMYK

Print Media

PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc.

Indoor advertising material, Transfer Paper

Rip Software

Maintop6.0, Photoprint19, Onyx 19

Image Format

JPG, TIFF, BMP, PDF, etc.

Computer System

Win7,Win8,Win10

Transmit Port

Network Port

Computer Cofigiration

Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above

Optional Device

Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System

Working Environment

Temp.:15-30,  Humidity: 35-65

Power Supply

50/60HZ, 220V, 10A

Package Machine Size

3130*940*1080m

 Machine Weight

300kg
