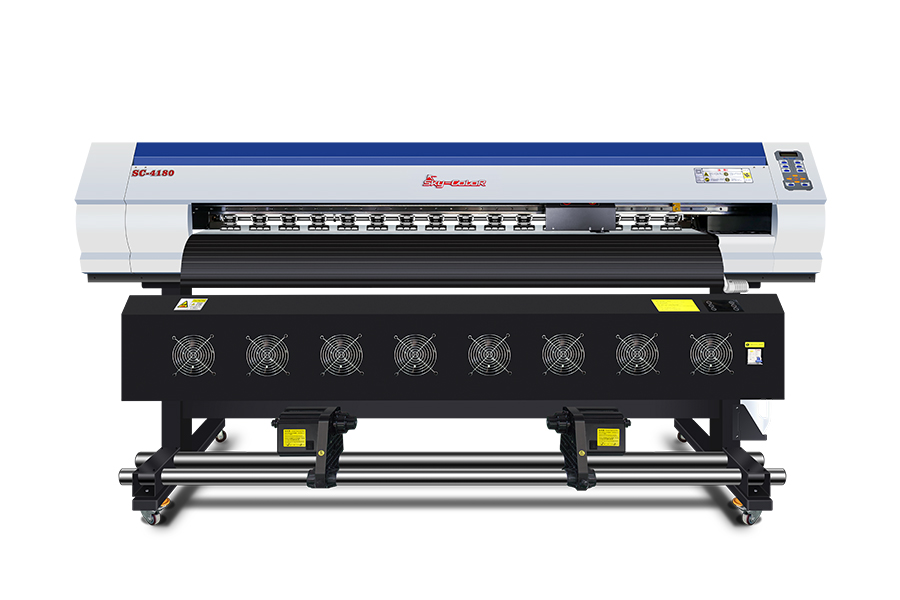

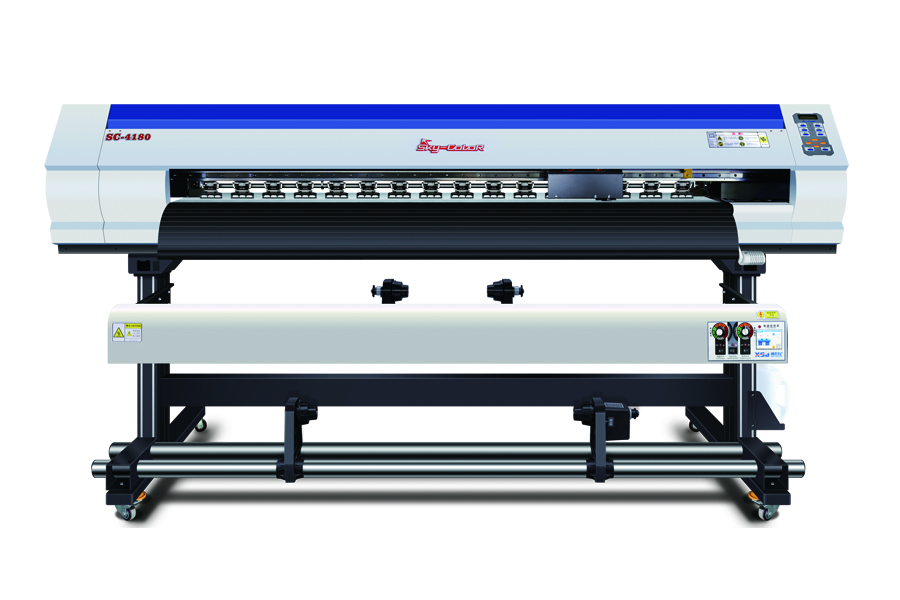

SC-4180TS

Mode:

Printhead EPSON DX5/Epson I3200-E1

Head Quantity 1 or 2

Colors Double Four Color

Number of Nozzles (180 Nozzles×8 Lines) 1/2 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry



Feature
1.Double four-color printing,1.6m and 1.80m wide format output
2.Indoor and outdoor ink are both available, meeting different printing needs.
3.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4.Printing resolution can reach to 1440dpi,even the word is small as 0.5mm.
5.Three different sizes of dots,achieving the complement of images,even under high speed or low resolution.


Detail

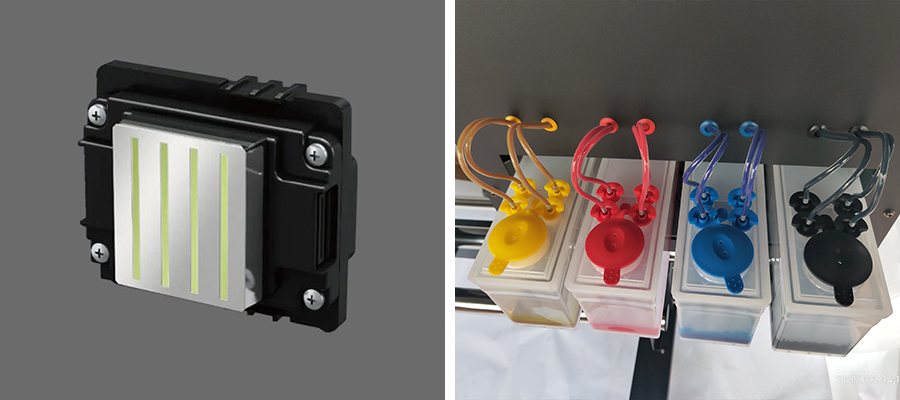

Printhead:
Support EPS F1440-A1 and EPS I3200-A1 model.
Ink Tank:
Bluk ink tanks for easy refilling.



Carriage:
Adjustable carriage, suitable for materials of different the thickness.
Pinch Roller:
The design of multiple pinch rollers ensure smoothness of the media during the printing process.


Drying System:
Uniquely designed three-stage heating,temp is adjustable to accelebrate media drying speed after printing.
Guide Rail:
Imported Japan THK linear guide rail makes carriage movement smooth and low noise.

Optional Items

1,Hiwin guide rail,more stable,longer working life,lower noise.
2,Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3,Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4,Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5,VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6,Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7,Different kinds of printing mode,reach to 28m per hour in production mode.
8,High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.
9,Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10,Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.





Normal eco solvent ink outdoor materials:

Banner, vinyl, back-lit, mesh,pvc, etc.












SC-4180TS

Printhead

Type: Epson Dx5
Resolution: 1440DPI
Head Clean: Auto cleaning, flash and Moisturizing

Type: I3200-E1
Resolution: 3200DPI
Head Clean: Auto cleaning, flash and Moisturizing

Quantity

2



2pass

45/h

2pass

80/h

Print Speed
*Tested on linear printing without feather function

4pass

32㎡/h

3pass

55㎡/h

6pass

26㎡/h

4pass

40㎡/h

8pass

18㎡/h

6pass

30㎡/h

Print Width

1850mm

Ink Type

Type: Water-based ink(Dye or Pigment),
Eco Solvent Ink, Sublimation Ink
Color:CMYK

Type: Water-based ink(Dye or Pigment),  Sublimation Ink
Color:CMYK

Print Media

PP, PVC, Vinyl, Flex Banner, Backlit, Canvas, etc.

Indoor advertising material, Transfer Paper

Rip Software

Maintop6.0, Photoprint19, Onyx 19

Image Format

JPG, TIFF, BMP, PDF, etc.

Computer System

Win7,Win8,Win10

Transmit Port

Network Port

Computer Cofigiration

Hard Disk: 500G or more, GPU: ATI Mobility
Radeon, Memory: 4G or above
CPU: Intel 4 I5 processor or above

Optional Device

Intelligent Dryer, Auto Feeding and Take-up System, Anti Collosion System

Working Environment

Temp.:15-30,  Humidity: 35-65

Power Supply

50/60HZ, 220V, 10A

Package Machine Size

2950*940*980m

 Machine Weight

240kg
