H1-UV
Mode:
Printheads EPSON I3200-U1
Print Width 1800mm
Resolution 3200
Printheads Quantity 3
Speed 15 ㎡/h
We're here to help:Easy ways to get the answers you need.

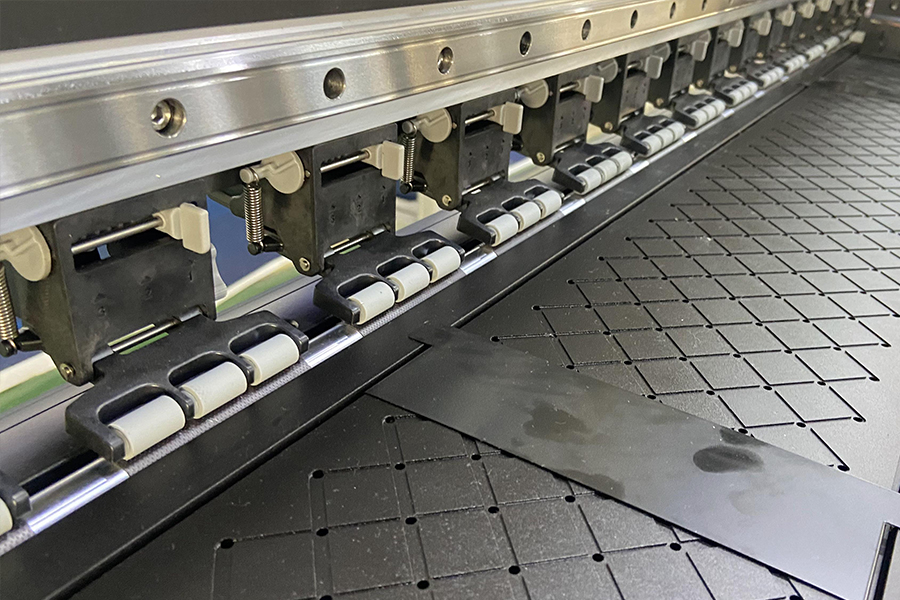

1,Double direction motor,high-resolution driver linear encoder,fewer errors in length,more stable running.
2,USB port more convenient,highest speed 15㎡/h,and it offers next work interface for printing in different places.
3,Epson 3200 printhead,achieving 3200DPI high-resolution output.
4,VSDT variable dot technology,smallest droplet is 3.5pl,largest droplet is 27pl,achieving prefect printing.
5,Unique planar feather function and wave feather function,eliminating BANDING during printing,achieving excellent quality and prefect improvement.
6,Multi-mode print option,common production mode can reach to high-speed of 15sqm/h,faster on spped and higher on resolution.

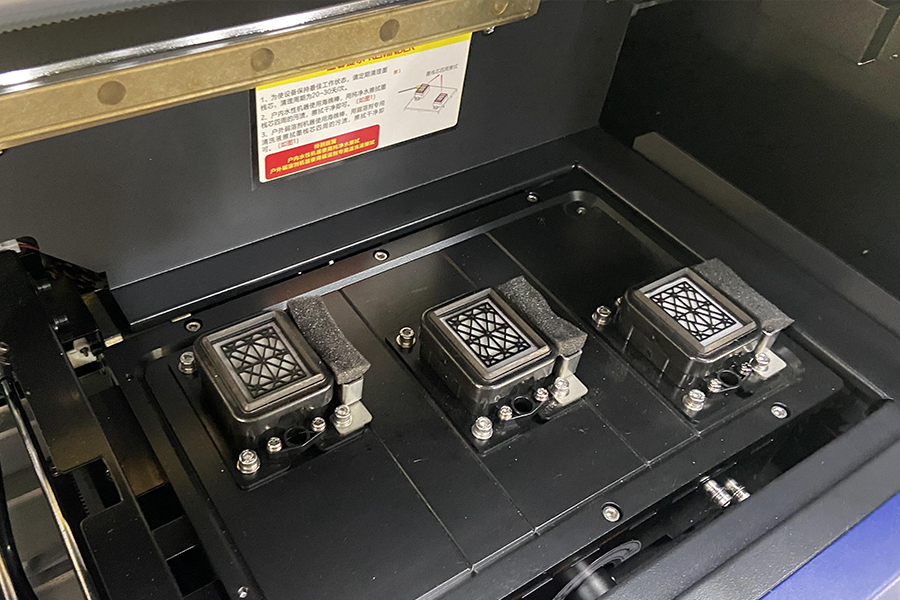

7,Own most advanced EPSON intelligent printhead cleaning and moisturizing device,providing safe convenient printhead cleaning and maintaining function,easy to print.
Before Lighting After Lighting
|

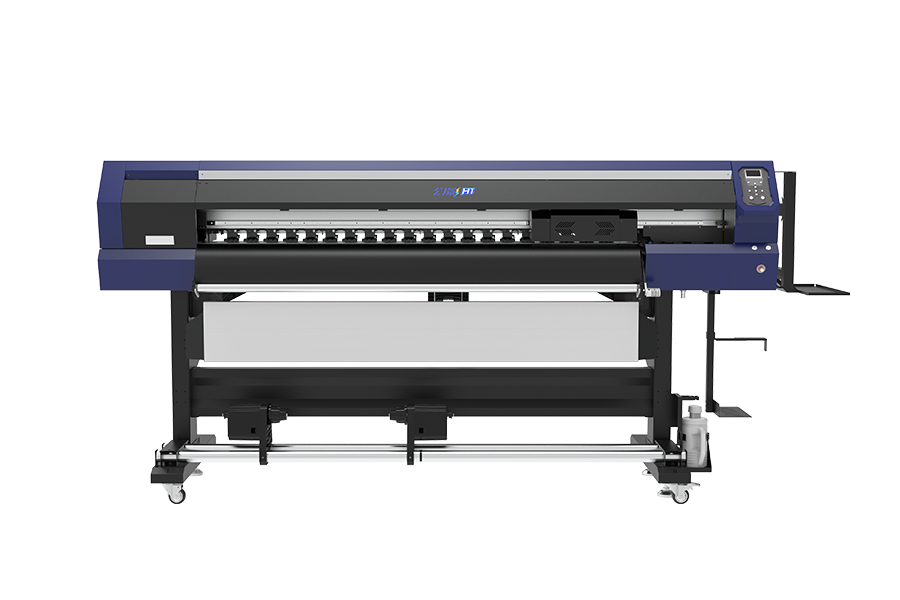

Skycolor H1-UV
|
||||
|
Printhead
|
Type:3pcs Epson3200 Micropiezo Printhead
|
|||
|
Resolution:3200DPI
|
||||
|
Head Clean: Auto cleaning, flash and Moisturizing
|
||||
|
Print Speed
*Tested on linear printing without feather function |
6pass 15sqm/h
|
|||
|
8pass 11sqm/h
|
||||
|
Print Width
|
1800mm
|
|||
|

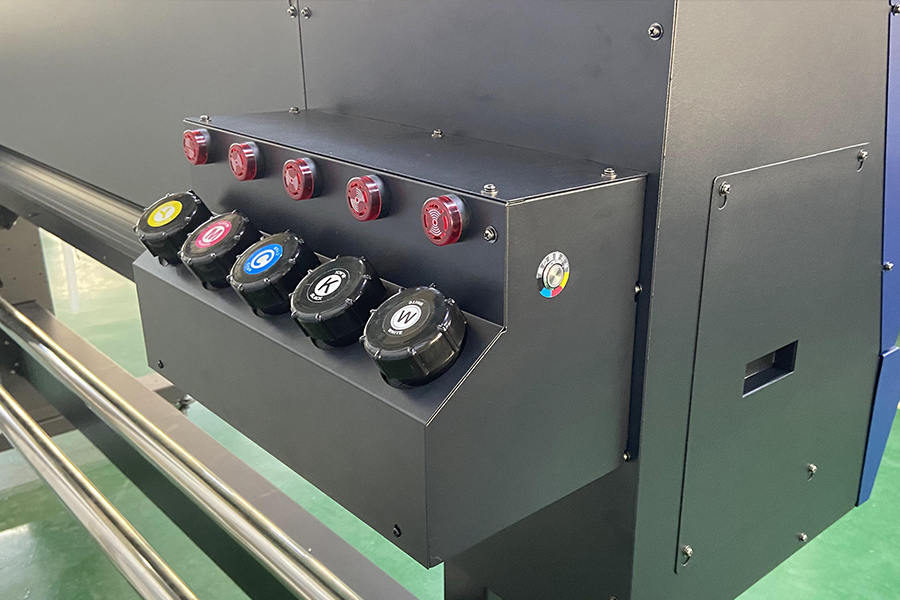

Ink Type
|
Type: UV Ink
Color:CMYK+W+CMYK |
|||
|
Feeding Media
|
Roll to Roll
|
|||
|
RIP Software
|
Maintop6.0, Photoprint19,
|
|||
|
Image Format
|
JPG, TIFF, BMP, PDF, etc.
|
|||
|
Computer System
|
Win7,Win8,Win10
|
|||
|
Transmit Port
|
USB2.0 / USB 3.0
|
|||
|
Curing Method
|
LED UV lamp CURING
|
|||
|
Working Environment
|
Temp:15℃-30℃, Humidity: 35℃-65℃
|
|||
|
Power Supply
|
50/60HZ, 220V, 10A
|
|||
|
Package Machine Size
|
2950*940*980cm
|
|||
|
Machine Weight
|
340kg
|
|||
