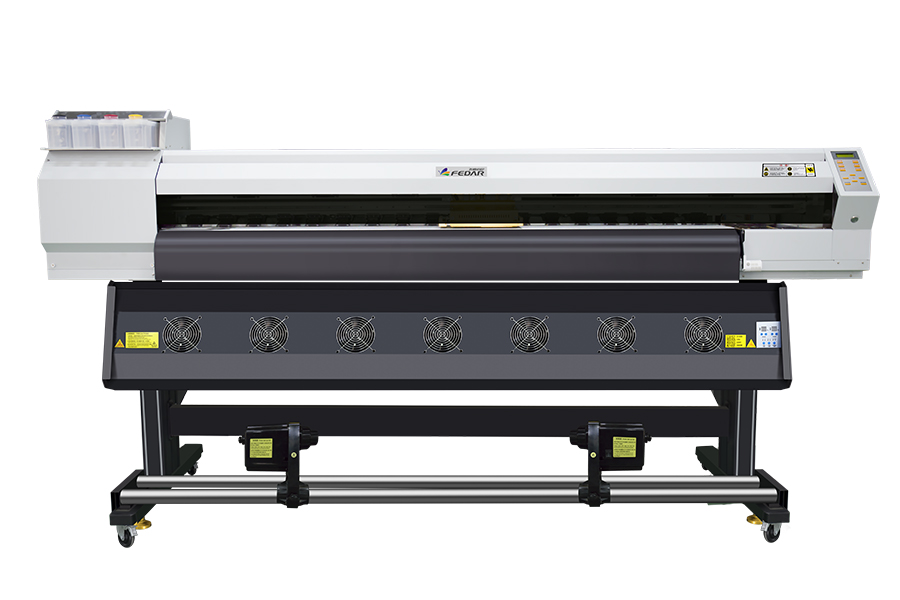

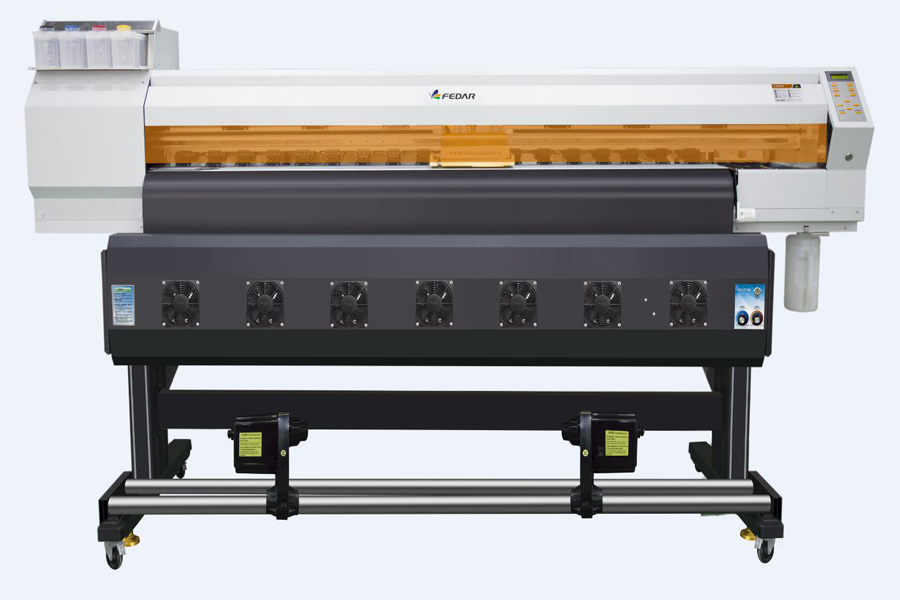

TC1932 2 Heads Printer

Mode:

Printhead 2pcs Epson I3200-A1

Max. Speed 98 m2/h

Colors Double Four Color

Number of Nozzles (800 Nozzles×4 Lines) 1/2 Head as optional

Printing Materials Flex Banner,Vinyl,PVC,Backlit,Canvas,Flag

RIP software Maintop5.3/Photoprint10.5/Onyx

Operating system WindowXP,Win7/8

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry


Feature
1.Double four-color printing,1.6m and 1.80m wide format output.
2.Indoor and outdoor ink are both available, meeting different printing needs.
3.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4.Printing resolution can reach to 1440dpi,even the word is small as 0.5mm.
5.Three different sizes of dots,achieving the complement of images,even under high speed or low resolution.

Detail



Carriage:
The height of double printheads can be arbitrarily adjusted.Anti-scratch function on both sides of the car reduces the printhead damage caused by
paper warping.
Printhead:
Adopt Epson I3200-A1 printhead with 3200 nozzles, which can improve the speed of printing greatly.Variable dot technology,3 sizes of dots can be
generated for smoother gradation vivid colors and sharp images.



Capping Station:
Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.
Disc Ink Filter:
Bulk tanks with 3L capacity make sure the continuous ink supply.Sub-tank is to keep all colors ink always at the same level.



Pinch Roller:
Multi-row independent pinch rollers, which can be lifted seperately,ensure the media moving without wrinkle.
Leadshine Motor:
The X and Y direction both use Leadshine servo motor which ensure the stable and durable.


Optional Items
1,Hiwin guide rail,more stable,longer working life,lower noise.
2,Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3,Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4,Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5,VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6,Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7,Different kinds of printing mode,reach to 28m per hour in production mode.
8,High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.
9,Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10,Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.





FD1900

Printhead

Epson I3200-A1

Nozzle Quantity

3200

Printhead Quantity

2

Print Width

1900mm

Ink Color

CMYK

Print Height

2-5mm

Resolution

360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer

Auto Taking-Up Meida Device

Speed
*Tested on linear printing without feather function

2pass

98/h

Drying Method

Extra Dryer Device

3pass

64/h

Ink Supply Method

Siphon Positive Pressure Ink Supply

4pass

50/h

Head Moisture
Method

Auto Head Cleaning and Moisturize

6pass

32/h

Print Media

Transfer Paper

Ink Type

Sublimation Ink,
Water based Pigment Ink

Transmission
Interface

Gigabit LAN

Computer System

Win7, Win8, Win10(Professional)

File Forms

TIFF, JPG, EPS, PDF, etc.

Operate Environment

Temp.:15℃-30℃,  Humidity: 35℃-65℃

RIP Software

NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3250*960*1170mm

Power Supply

210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W

Computer Configuration

Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet

Standard Configuration

Ink Level Alarm System
