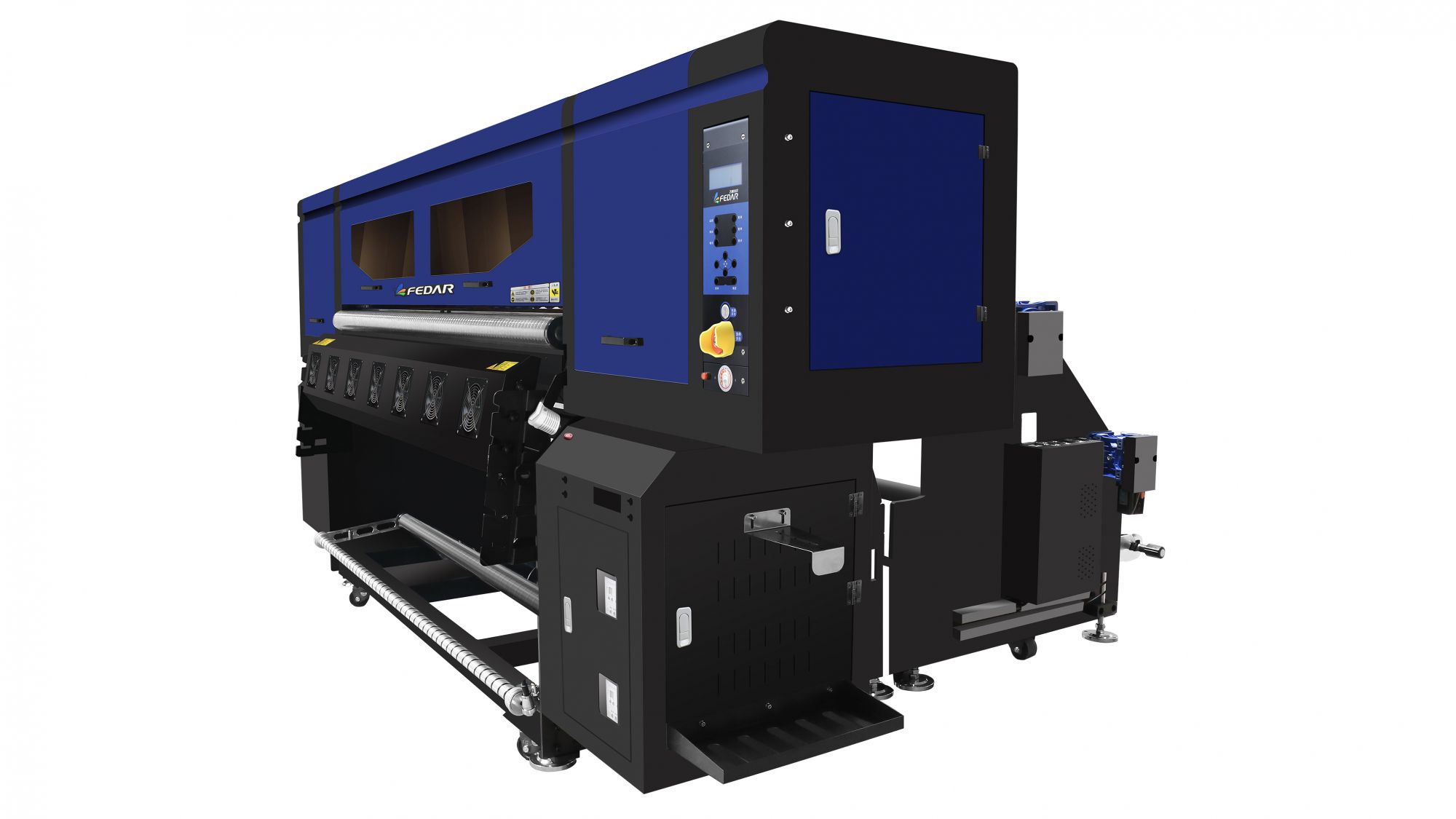

FEDAR FD61915E Sublimation Printer

Mode:

Printheads EPSON I3200-A1

Print Width 1900mm

Resolution 3200

Printheads Quantity 15

Speed 1 PASS 610 ㎡/h

We're here to help:Easy ways to get the answers you need.

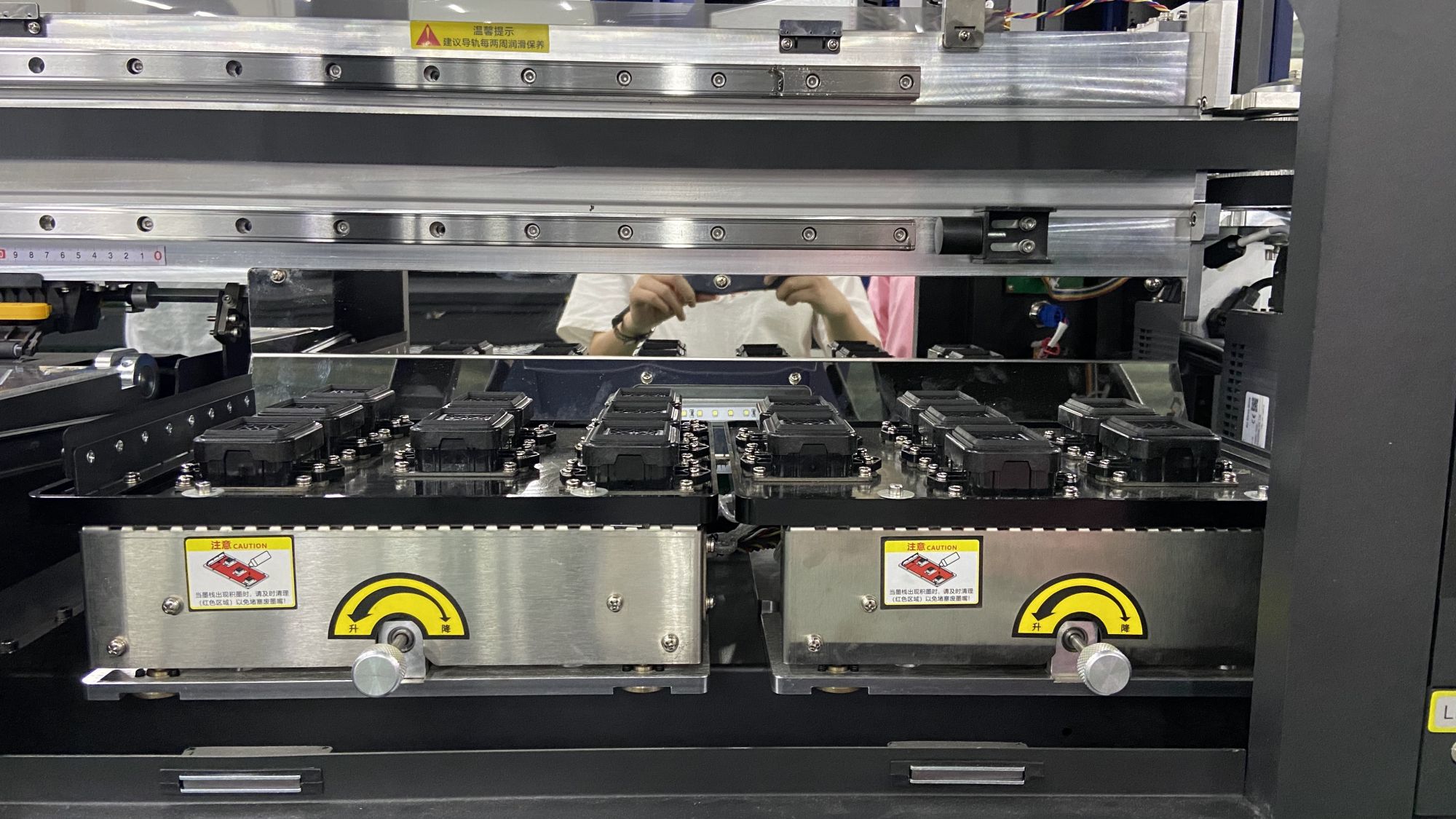

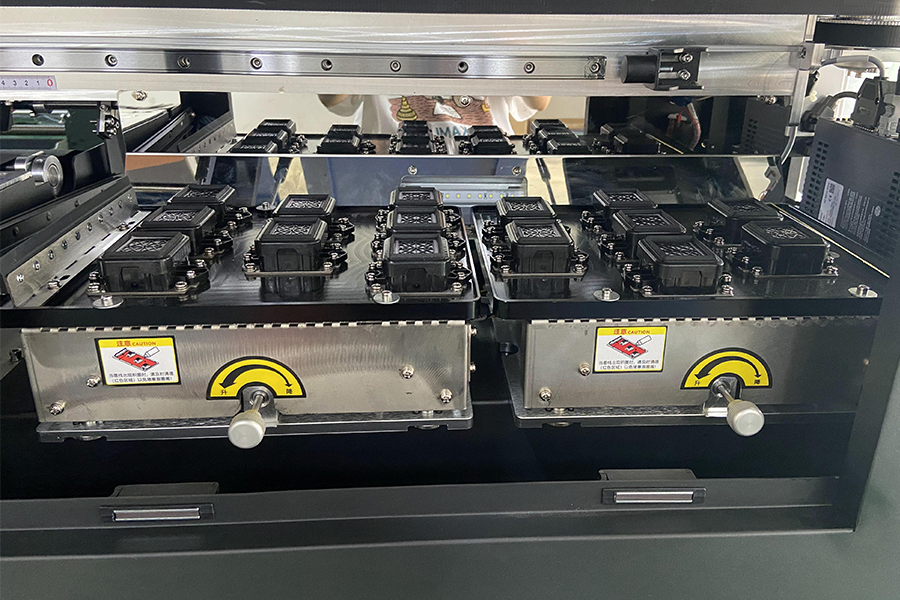

Capping Station:
Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

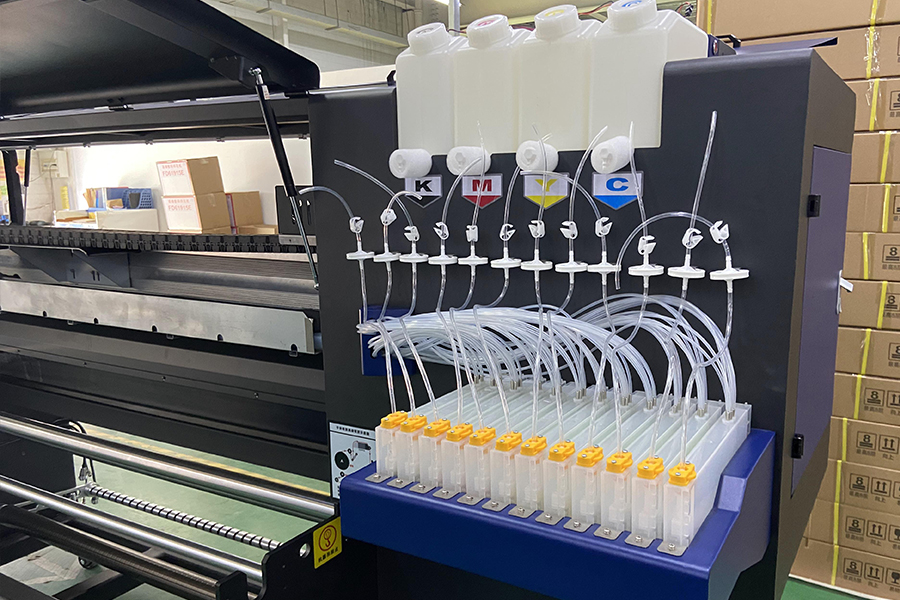

Ink Tanks:
Large-capacity ink cartridges, with a secondary ink supply system to avoid frequent addition of ink.

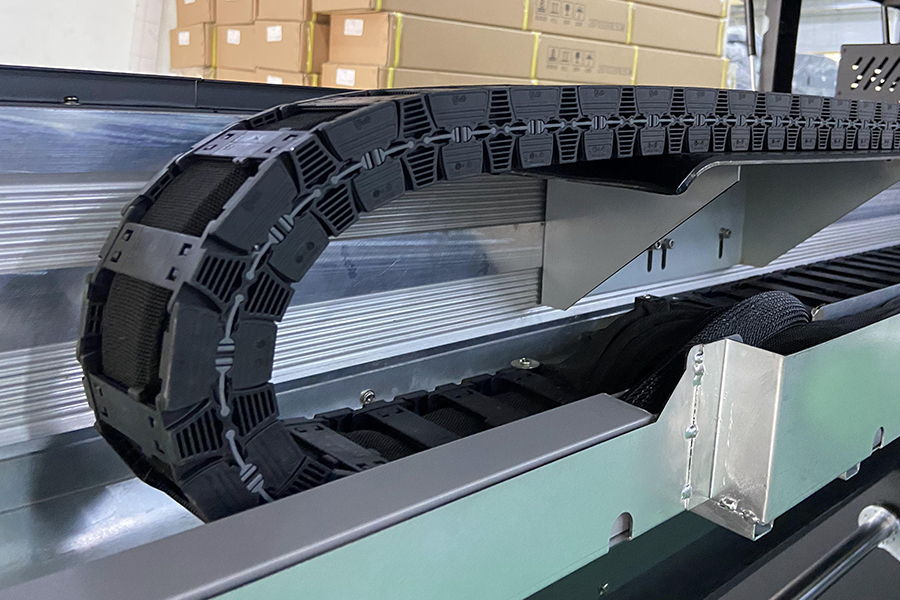

Ink Chain:
Imported German IGUS ink chain, high quality, to ensure the smooth completion of the printing.

Pinch Rollers:
Anti-static design, uniform strength, to ensure smooth paper feeding, simple and easy to adjust.

FD61915E
Printhead	Epson I3200-A1		Nozzle Quantity	3200
Printhead Quantity	15		Print Width	1900mm
Ink Color	CMYK		Print Height	2-5mm
Resolution	3601200/3601800/ 7201200/7201800(DPI)		Media Transfer	Auto Media Feeding and Taking-up System, Roll to Roll
Speed *Tested on linear printing without feather function	1pass	610㎡/h	Drying Method	Extra Dryer Device
	2pass	300㎡/h	Ink Supply Method	Siphon Positive Pressure Ink Supply
			Head Moisture Method	Auto Head Cleaning and Moisturize
	*speed is tested on full-size media without feather function		Print Media	Transfer Paper
Ink Type	Sublimation Ink, Water based Pigment Ink		Transmission Interface	Gigabit LAN
Computer System	Win7, Win8, Win10		File Forms	TIFF, JPG, EPS, PDF, etc.
Operate Environment	Temp.:15℃-30℃, Humidity: 35℃-65℃		RIP Software	NeoStanpa,Ergosoft, Onyx,Photoprint,Maintop
Package Size	387013202020mm		Power Supply	210-230V, 50/60HZ, 16A Print Power: 1500W Dryer Power: Max.9000W
Computer Configuration	Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU, CPU: Inte I5/I7, Gigabit LAN
Standard Configuration	Ink Level Alarm System
