  • FEDAR FD53215E Sublimation Printer
  • FEDAR FD53215E Sublimation Printer
  • FEDAR FD53215E Sublimation Printer

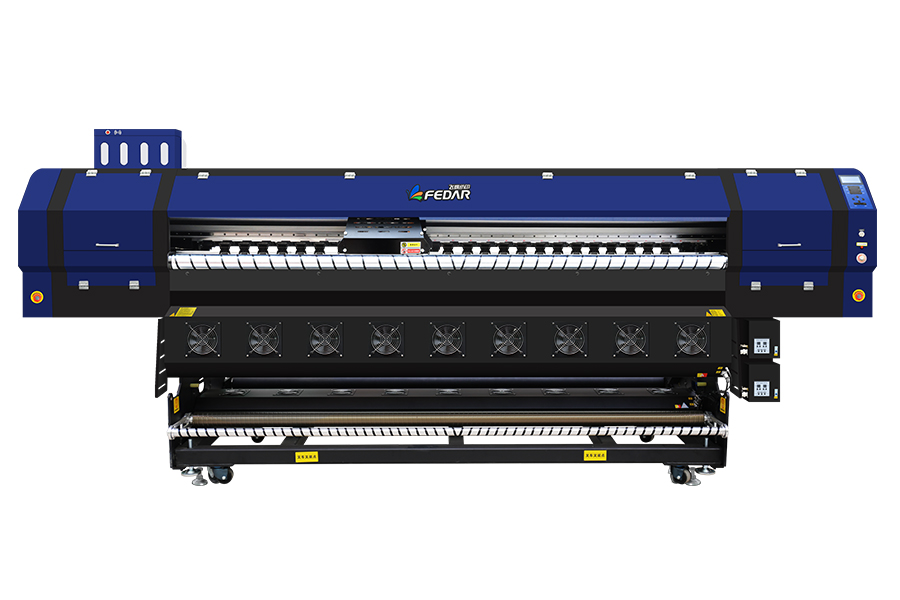

FEDAR FD53215E Sublimation Printer

Mode:

Printheads EPSON I3200-A1

Print Width 3200mm

Resolution 3200

Printheads Quantity 15

Speed 1 PASS 720 ㎡/h

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

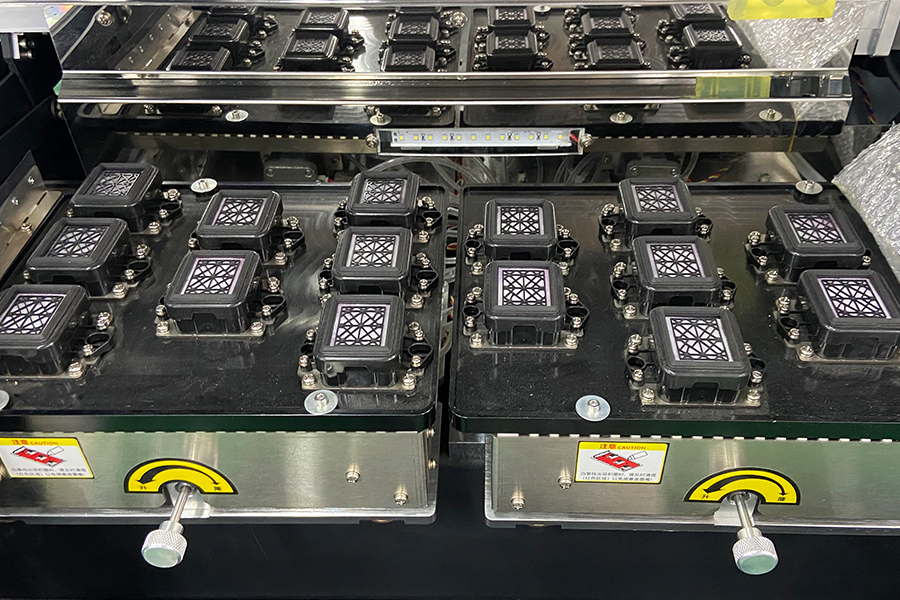

Capping Station:
Advanced liftable and sealed capping station, ink absorption, ink scraping is accurate.

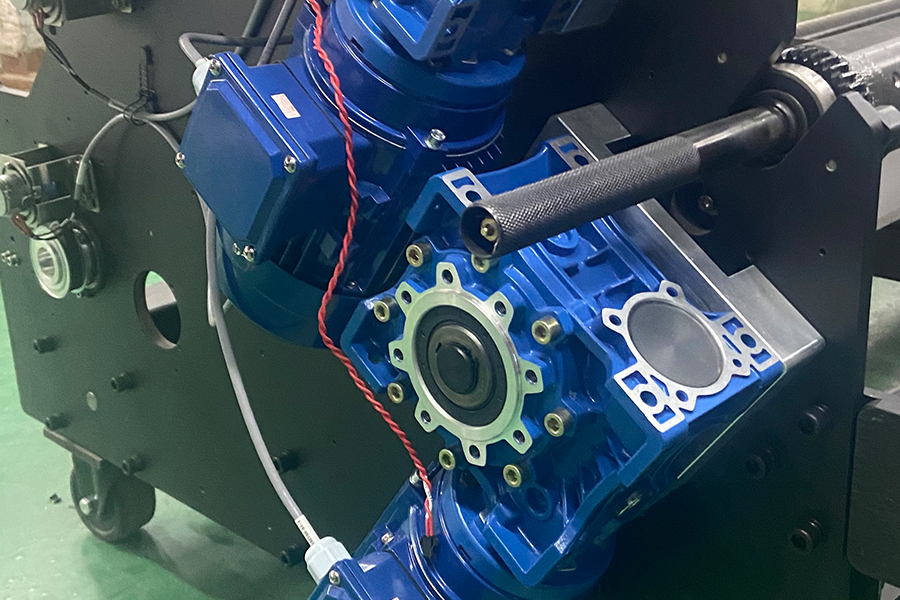

Motor:
High quality motor with high resolution, low length error, more stable.



Pinch Rollers:
Anti-static design, uniform strength, to ensure smooth paper feeding, simple and easy to adjust.

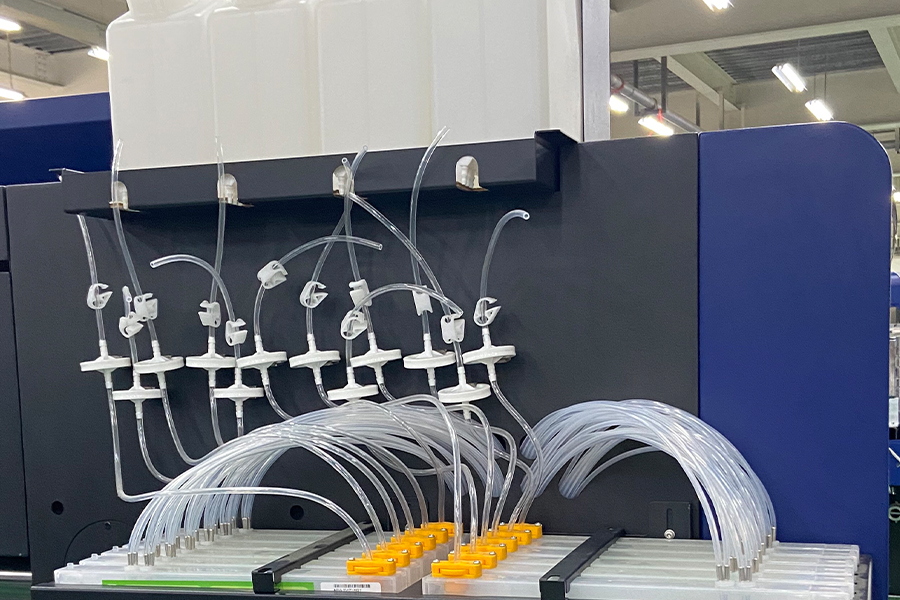

Ink Tanks:
Large-capacity ink cartridges, with a secondary ink supply system to avoid frequent addition of ink.



FD53215E
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 15 Print Width 3200mm
Ink Color CMYK Print Height 2-5mm
Resolution 360*1200/360*1800/ Media Transfer Auto Media Feeding and
720*1200/720*1800(DPI) Taking-up System, Roll to Roll
Speed 1pass 720㎡/h Drying Method Extra Dryer Device
*Tested on linear printing without feather function 2pass 370㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
      Head Moisture Auto Head Cleaning and Moisturize
  Method
  *speed is tested on full-size media Print Media Transfer Paper
  without feather function
Ink Type Sublimation Ink, Transmission Gigabit LAN
Water based Pigment Ink Interface
Computer System Win7, Win8, Win10 File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃,  Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop
Package Size 5320*1170*1900mm Power Supply 210-230V, 50/60HZ, 16A
Print Power:2500W
Dryer Power: Max.14000W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
CPU: Inte I7, Gigabit LAN
Standard Configuration Ink Level Alarm System
