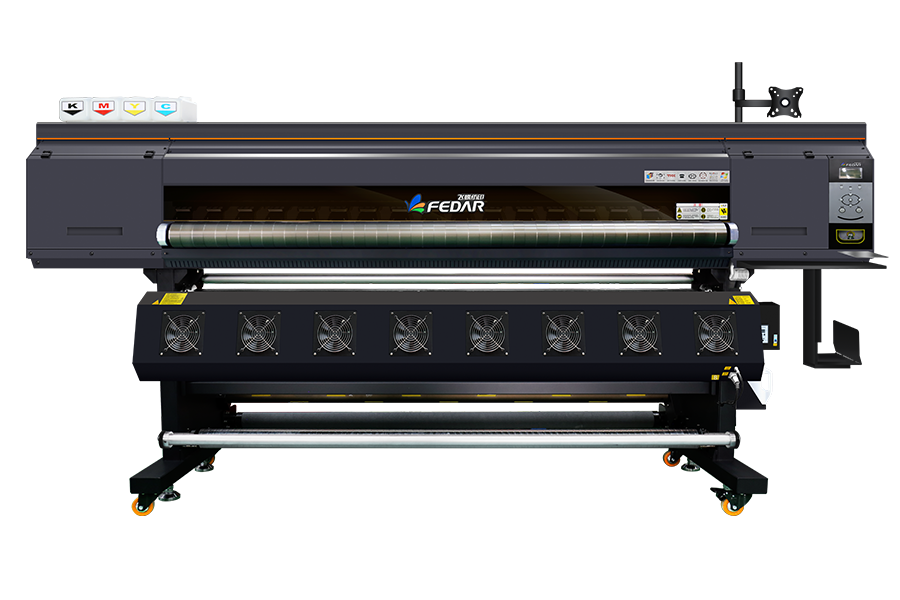

FD5223E 2.2m Printer (Stop)

Mode:

Printhead 3pcs Epson I3200-A1

Max. Speed 120 ㎡/h

Print Width 2200mm

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

 Feature

1. High Precision Printhead:
Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.
2. Advanced Capping Station:
Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the ink flow fluently.
3. Intelligent Foggy Printing & VSDT Printing:
Unique two-dimension intelligent foggy and wave-foggy function,and VSDT variable droplet technology,improve printing quality obviously.
4. Ink Starving Alarm:
Reduces the tediousness of frequently checking the remaining amount of ink,and at the same time reminds to add ink in time to ensure the continuity
of printing work.

5. Stable Media Feeding and Take-up System:
Convenient and fast, the printing media is quickly stored, equipped with automatic paper measurement and anti-rubbing function, the consumables
are warped, printing is automatically paused to prevent scratching the printhead.

Detail

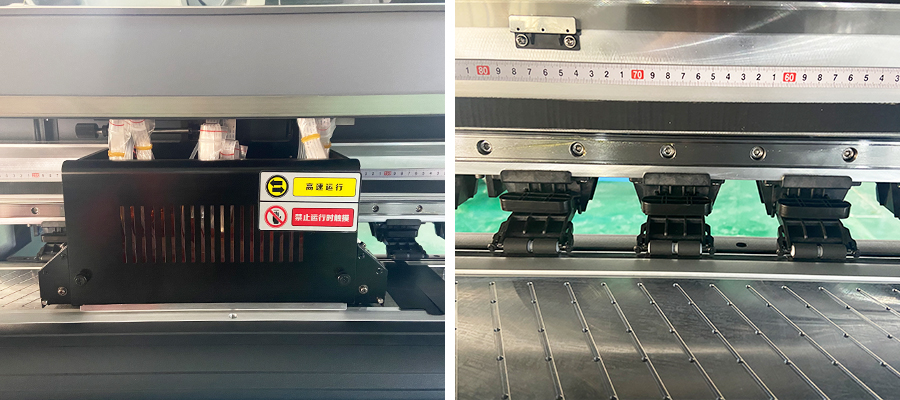

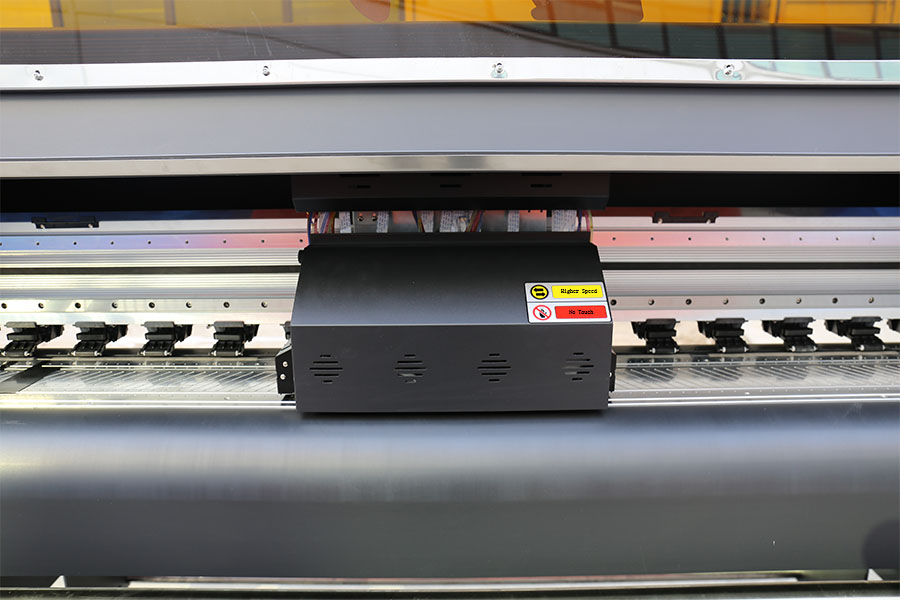

Carriage:
The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.
Pinch Roller:
Special designed pinch roller,each one can be lifted respectively to eliminate the wrinkle caused by media.

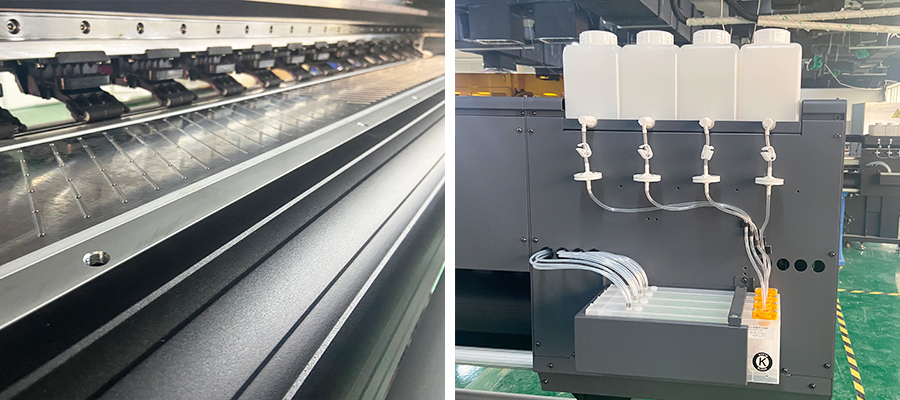

Platform:
Platform adopts 8mm aluminium alloy,which can reduce the shape variables during transportation.
Ink Tank:
Four units of 3L super large capacity ink reservoirs provide ink independently and continuously, which guarantees the long-term continuity of ink output.

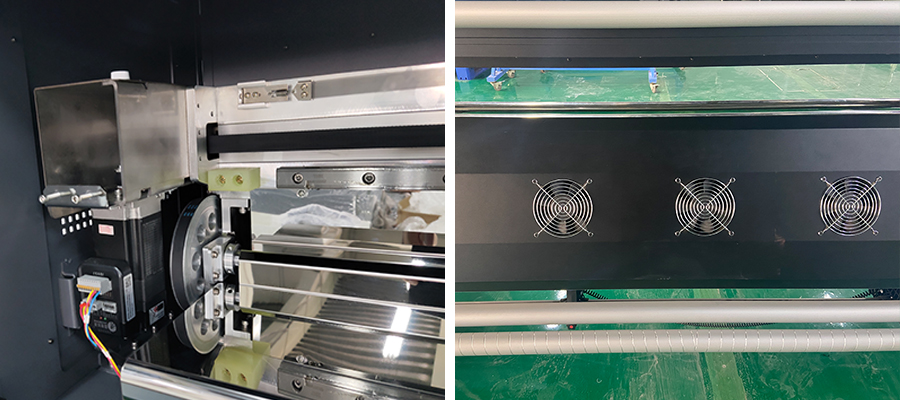

Leadshine Motor:
Leadshine server motor driver,quality assurance,high resolution and stable.
Intelligent Air-heat Dryer:
Intelligent air-heat integrated dryer, two-stage heating,middle warm air and smart start-stop technology,ensure the drying performance and more
energy-saving at the same time.







FD5223E

Printhead

Epson I3200-A1

Nozzle Quantity

3200

Printhead Quantity

3

Print Width

2200mm

Ink Color

CMYK

Print Height

2-5mm

Resolution

360*1200/360*1800/
720*1200/720*1800(DPI)

Media Transfer

Auto Tension Taking-Up Meida Device

Speed
*Tested on linear printing without feather function

2pass

125㎡/h

Drying Method

Extra Dryer Device

3pass

90㎡/h

Ink Supply Method

Siphon Positive Pressure Ink Supply

4pass

75㎡/h

Head Moisture
Method

Auto Head Cleaning and Moisturize

6pass

50㎡/h

Print Media

Transfer Paper

Ink Type

Sublimation Ink,
Water based Pigment Ink

Transmission
Interface

Gigabit LAN

Computer System

Win7, Win8, Win10(Professional)

File Forms

TIFF, JPG, EPS, PDF, etc.

Operate Environment

Temp.:15℃-30℃,  Humidity: 35℃-65℃

RIP Software

NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop

Package Size

3250*960*1170mm

Power Supply

210-230V, 50/60HZ, 16A
Print Power: 1200W
Dryer Power: Max.3600W

Computer Configuration

Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet

Standard Configuration

Ink Level Alarm System
