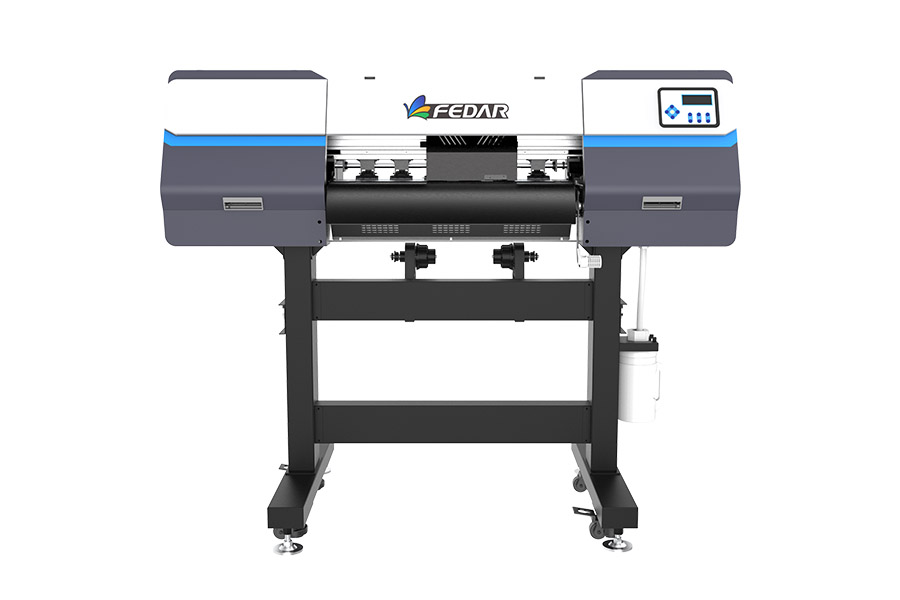

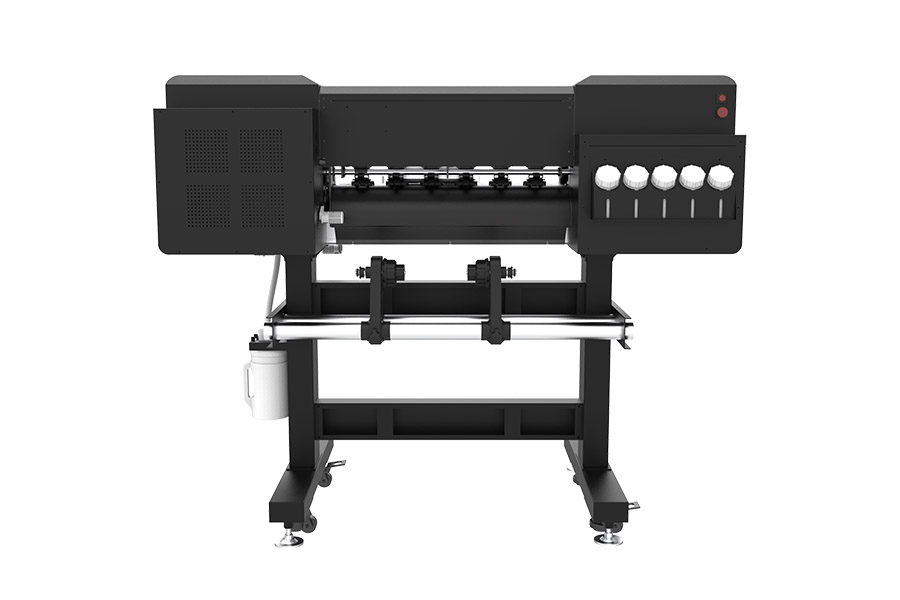

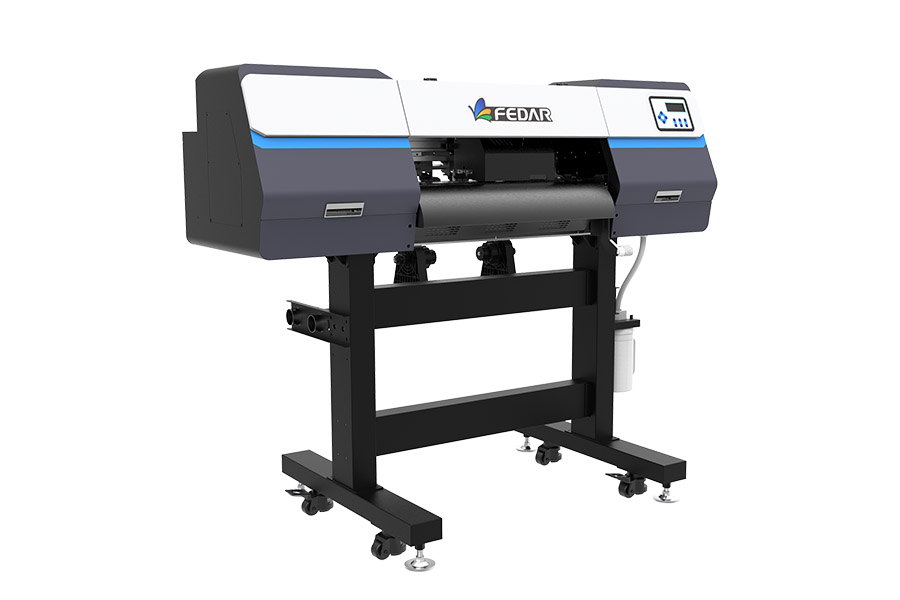

FD70-2 DTF Printer

Mode:

Printhead 2pcs Epson I3200-A1

Max. Print Width 65cm

Ink Type Pigment Ink

Colors CMYK+W

Printing Materials PET Film

Application T shirt cotton material

Warranty 1 year

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry






New Technology Cotton Directly Flim Transfer Paper Printing Machine With Pigment Ink



 1. Adopt EPS3200 printhead,4 pass printing speed 13sqm/h.





 2. Complete production solution,low-cost invest,big profits





 3. High efficiency,High cost performance





 4. Easy to operate,max support 9 gray scale





 5. Wide applications,design for textile printing





 6. Environment friendly and energy conservation








1. Specially Designed Car
The position of the print head can be adjusted according to different printing medias, and anti-collision devices at both ends.
2. Advanced Capping Station
Equipped with advanced intelligent auto printhead cleaning and moisturizing device,which can pump ink well and keep the
ink flow fluently.
3. Fluororubber Pressure Roller
US fluororubber pressure roller prevents static electricity.The unique lifting device can respond to the phenomenon of
partial paper bulging during the printing process.
4. High Precision Platform
The printing platform is controlled within ±7.5 wires and the surface hard oxidation treatment, no deformation for a long time.

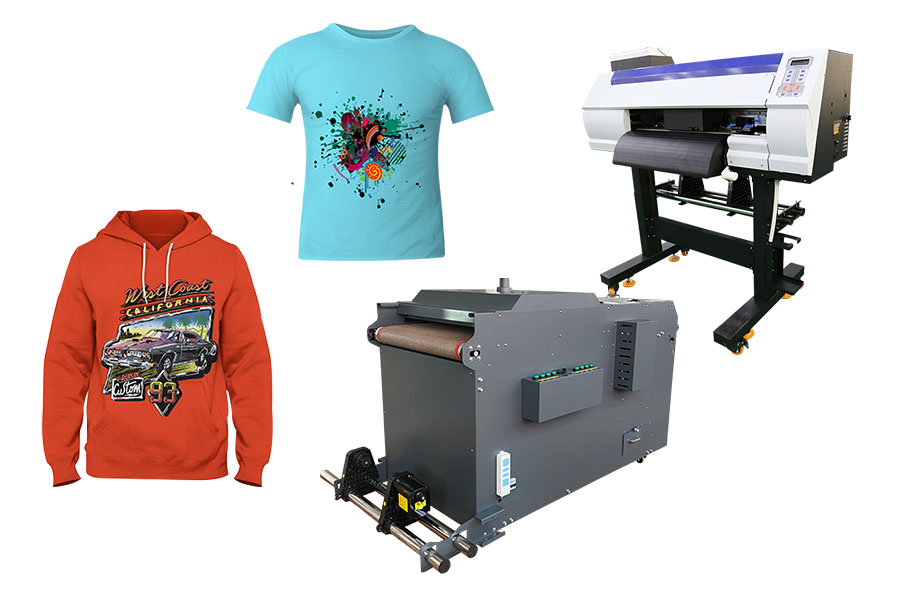

Widely Application in T shirt or other textile materials


          FD70-2  Digital Printing Plotter With Shake Powder
Printhead Epson I3200-A1 Nozzle Quantity 3200
Printhead Quantity 2 Print Width 700mm
Ink Color CMYK+W Pigment Ink Print Height 2-5mm
Resolution 360*1200/360*1800/ Media Pyrograph Film
720*1200/720*1800(DPI)
Speed     Drying Method Extra Dryer Device
*Tested on linear printing without feather function 2pass 15-20㎡/h Ink Supply Method Siphon Positive Pressure Ink Supply
  6pass 12-15㎡/h Head Moisture Auto Head Cleaning and Moisturize
  Method
  8pass 9-11㎡/h Ink Cycle Auto White ink cycle
Ink Type Pigment Ink Transmission Gigabit LAN
Interface
Computer System Win7, Win8, Win10(Professional) File Forms TIFF, JPG, EPS, PDF, etc.
Operate Environment Temp.:15℃-30℃, Humidity: 35℃-65℃ RIP Software NeoStanpa,Ergosoft,
Onyx,Photoprint,Maintop
Package Size 1200*960*1000mm Power Supply 210-230V, 50/60HZ, 16A
Print Power: 1000W
Dryer Power: Max.3500W
Computer Configuration Hard Disk: NTFS, C Disk Space: More than 100G, HARD Disk:WG500G GPU: ATI Discrete GPU,
Memory: 4G, CPU: Inte I5/I7, G-Ethernet
