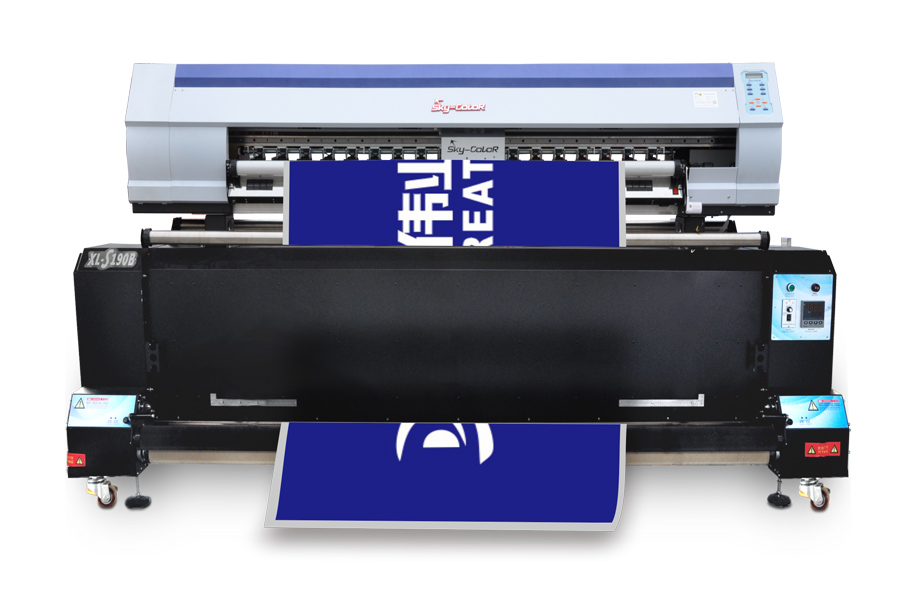

TR 4180 (Stop)

Mode:

Printhead EPSON I3200-A1

Head Quantity 2

Max. Print Width 1800mm

Ink Type Sublimation ink

RIP Software PrintFactory, Photoprint, Onyx, Maintop

Application Banner, Polyester, Chemical Fiber, Flag, etc.

We're here to help:Easy ways to get the answers you need.

  • Describe
  • Application
  • Parameter
  • Inquiry

Feature
1.Double four-color printing,1.6m and 1.80m wide format output
2.Indoor and outdoor ink are both available, meeting different printing needs.
3.Multi-row pinch rollers ensure the machine can print with an accurate size of feeding media.
4.Printing resolution can reach to 1440dpi,even the word is small as 0.5mm.
5.Three different sizes of dots,achieving the complement of images,even under high speed or low resolution.


Detail


Printhead:
Support EPS F1440-A1 and EPS I3200-A1 model.
Ink Tank:
Bluk ink tanks for easy refilling.



Carriage:
Adjustable carriage, suitable for materials of different the thickness.
Pinch Roller:
The design of multiple pinch rollers ensure smoothness of the media during the printing process.


Drying System:
Uniquely designed three-stage heating,temp is adjustable to accelebrate media drying speed after printing.
Guide Rail:
Imported Japan THK linear guide rail makes carriage movement smooth and low noise.

Optional Items

1,Hiwin guide rail,more stable,longer working life,lower noise.
2,Imported dual direction motor,high-resolution driver linear encoder,higher resolution,fewer errors in length,more stable running.
3,Hi USB interface,transmission speed can reach to 480M/S,plug and play conveniently.
4,Adopt EPSON DX5 printhead,variable dots technology,1440DPI high resolution output.
5,VSDT variable droplet techonology,the smallest droplet is 3.5PL,largest droplet is 27PL,achieve the prefect printing quality.
6,Unique two-dimension intelligent eclosion and wave-eclosion function,elimination banding effectively in printing,improveing printing quality obviously.
7,Different kinds of printing mode,reach to 28m per hour in production mode.
8,High quality,clean,pump and moisturize automatically,which can also pump ink well and keep the ink flow fluently.
9,Four large ink reservoirs provide ink durably,keeping wide format high-speed printing wonderfully.
10,Adopt the most recommended ink in advertising industry,achieving fast drying,moisture-proofing and sticky-proofing.







Model

TR 4180

Printhead

Double Epson 5113

Speed

2pass 80m2/h



3pass 55m2/h



4pass 40m2/h

Print Width

1800mm

Ink

Sublimation ink Color: CMYK

Media

Banner/Polyester/Chemical Fiber

Rip Software

Maintop/Photoprint/Onyx

Image Format

JPE/TIFF/BMP/PDF...

Computer System

Win7/Win8/WinXP

Transmit Port

USB 3.0

Computer Hardware Configuration

Hard disc.:500G GPU: ATI Discrete GPU CD-ROM: DVD ROM Memory: 2G or more than 2G CPU: Intel i5 process

Working Environment

Temperature: 20-35Humidity: 35-65%

Power

50/60HZ, 220V, 16A

Machine Size

Machine Size: 2910*1220*1570mm Package Size: 3000*880*830mm

Weight

740KG-780KG
